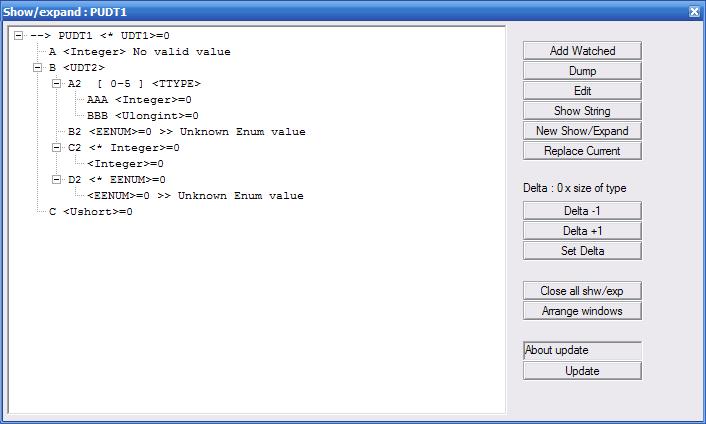

An easy way to see udt or pointed area. Option in proc/var and watched context menus.
- Up to 10
windows displaying the data pointed if pointer and/or expanding if udt.
- There are
the same possibilities than with the variables (add watched, dump, edit..)
- New expand : open a new window with the selected element
- Replace current : just replace the current root with the selected
element, without opening a new window
- Delta +/- : to move forward/backward in function of size of standard
or udt type
- Set delta : enter a value to set the offset from initial address
Eg. if the variable is a
pointer to an array of udt of 12 bytes size and start
address is 3456. Clicking delta+ moves the address to 3468 :
the second element.
-To close/to
arrange all the expand windows
- About update : the update is not automatic but done by clicking
the update button. Be careful the data could have been deleted
