The parser. More...

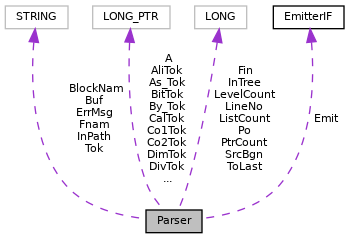

Collaboration diagram for Parser:

[legend]

Public Types
enum	ParserTokens { MSG_STOP = -1 , MSG_ERROR , TOK_EOS , TOK_BRCLO , TOK_COMMA , TOK_KLOPN , TOK_KLCLO , TOK_DOT , TOK_MEOP , TOK_3DOT , TOK_QUOTE , TOK_LATTE , TOK_BROPN , TOK_EQUAL , TOK_ABST , TOK_ALIA , TOK_AS , TOK_BYRE , TOK_BYVA , TOK_CAST , TOK_CDEC , TOK_CLAS , TOK_COMM , TOK_CONS , TOK_DECL , TOK_DEFI , TOK_DIM , TOK_END , TOK_ENUM , TOK_EXDS , TOK_EMAC , TOK_EXRN , TOK_EXPO , TOK_INCL , TOK_LIB , TOK_MACR , TOK_WITH , TOK_NAMS , TOK_ONCE , TOK_OVER , TOK_PASC , TOK_PRIV , TOK_PROT , TOK_RDIM , TOK_PTR , TOK_PEEK , TOK_PUBL , TOK_SCOP , TOK_SHAR , TOK_PRES , TOK_STAT , TOK_STCL , TOK_TYPE , TOK_UNIO , TOK_VAR , TOK_VIRT , TOK_FUNC , TOK_FILD , TOK_OPER , TOK_PROP , TOK_SUB , TOK_CTOR , TOK_DTOR , TOK_BYTE , TOK_DOUB , TOK_INT , TOK_LONG , TOK_LINT , TOK_STRI , TOK_SHOR , TOK_SING , TOK_UBYT , TOK_ULNG , TOK_ULIN , TOK_UINT , TOK_USHO , TOK_WSTR , TOK_ZSTR , TOK_ANY , TOK_WORD , TOK_COMSL , TOK_COMML }
	The tokens used by the parser. More...

Public Member Functions
	Parser (BYVAL_AS_EmitterIF_PTR)
	The constructor. More...

Filehandlers
Filehandlers are used to load some FreeBASIC source code input in to the buffer Parser::Buf from different input channels (may be the `STDIN` pipe, a single file or all files in a folder). Afterwards the source code gets parsed and translated output created by the emitter gets returned.
SUB	File_ (BYREF_AS_STRING, BYVAL_AS_INTEGER)
	Read a buffer from a file and parse. More...

SUB	StdIn ()
	Read a buffer from pipe `STDIN` and parse. More...

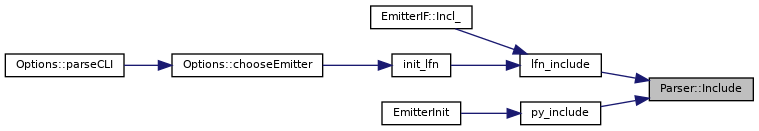

SUB	Include (BYVAL_AS_STRING)
	Start a new parser to #`INCLUDE` a file. More...

SUB	writeOut (BYREF_AS_STRING)
	Write a piece of output (for external emitters only) More...

Properties to extract original source code
Properties are used to extract original text from the input buffer at a certain position. This is the current position of the parser, or the position of the given parameter.
PROPERTY_AS_LONG_PTR	CurTok ()
	The current token. More...

PROPERTY_AS_STRING	BitIni ()
	The initialization of a bitfield. More...

PROPERTY_AS_STRING	SubStr ()
	Context of current token. More...

PROPERTY_AS_STRING	SubStr (BYVAL_AS_LONG_PTR)
	Context of current token at position T. More...

Parsers for lists and blocks
External demuxers are called from emitter-handlers when they sit on a list of statments, ie. in an ENUM block or in a DIM statement with more than one variable.
SUB	parseListNam (BYVAL_AS_EmitFunc)

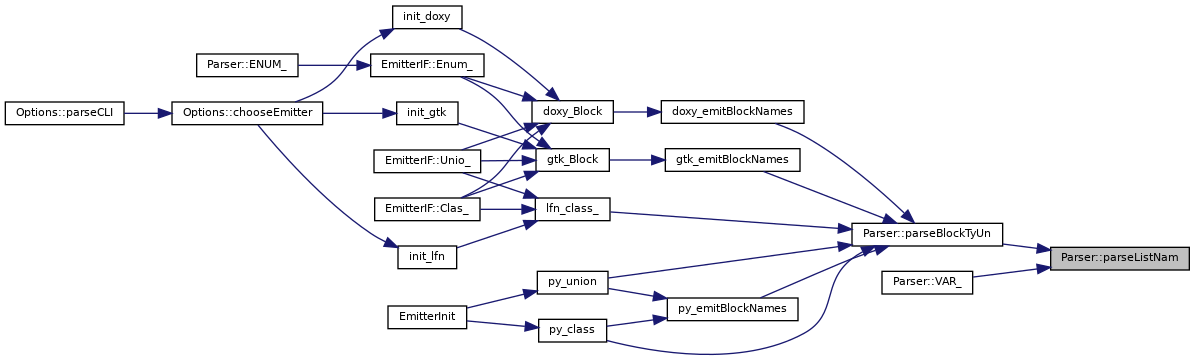

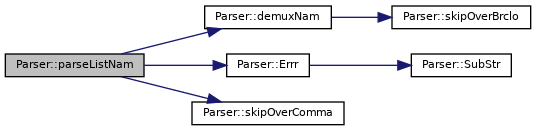

	Evaluate a list of names. More...

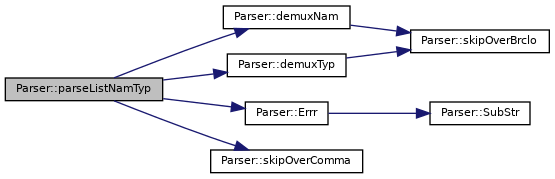

SUB	parseListNamTyp (BYVAL_AS_EmitFunc)
	Evaluate a list of declarations. More...

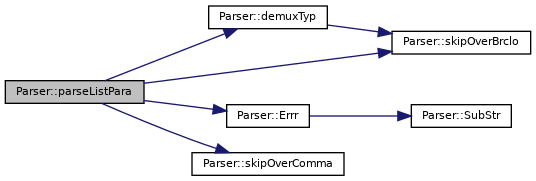

SUB	parseListPara (BYVAL_AS_EmitFunc)
	Evaluate a parameter list. More...

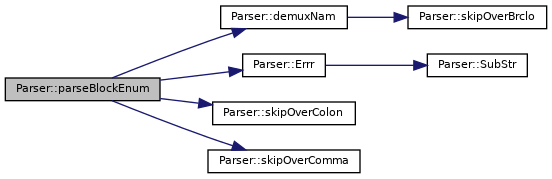

SUB	parseBlockEnum (BYVAL_AS_EmitFunc)
	Evaluate the context of an ENUM block. More...

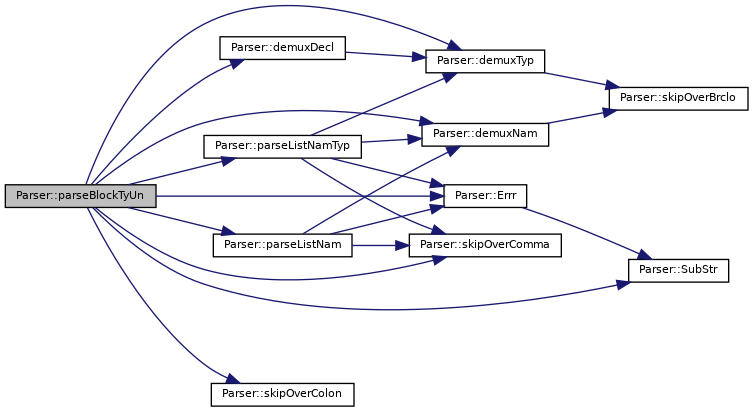

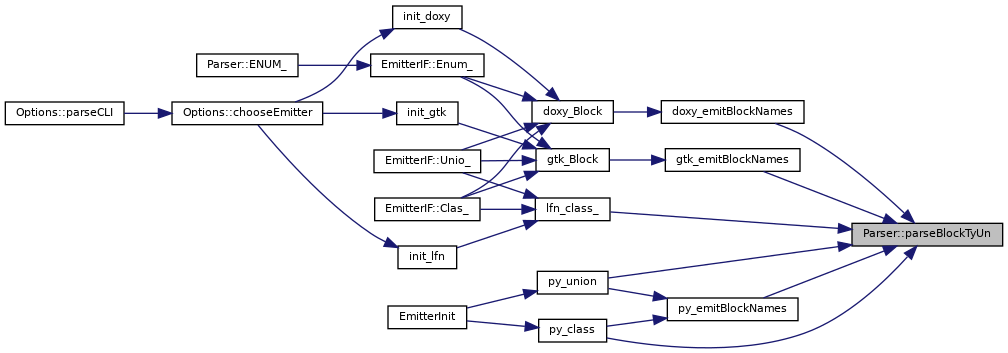

SUB	parseBlockTyUn (BYVAL_AS_EmitFunc)
	Evaluate the context of a block. More...

Public Attributes
Parser STRINGs
STRING variables to exchange data with th emitters.
STRING	InPath = ""
	path of current of input file (option –tree (-t)) More...

STRING	Fnam
	the name of the input file More...

STRING	Buf
	the input buffer More...

STRING	ErrMsg
	an error message More...

STRING	Tok
	the token list (binaries) More...

STRING	BlockNam
	the name of a block (ENUM, UNION, TYPE) More...

Parser token pointers
Pointers to the token list, used to specify the result of the parsing process. The tokens specify the construct in progress and they are used by the emitters to create their output. Four main tokens specify the kind of the construct: StaTok: the start of the current construct NamTok - subtokens: DimTok, IniTok (may be zero in parameter lists) TypTok - subtokens: ShaTok, PtrTok, Co1Tok, Co2Tok (is zero for VAR, may be zero for CONST) FunTok - subtokens: ParTok, AliTok, DivTok, By_Tok (is zero for variables) Other tokens are only valid if the main token is not zero.
LONG_PTR	StaTok
	the pre-parsed token More...

LONG_PTR	NamTok
	the name token of the construct More...

LONG_PTR	DimTok
	the token of the left parenthesis of a dimension More...

LONG_PTR	IniTok
	the start character of an initializer ('=') More...

LONG_PTR	BitTok
	the start character of a bitfiled declaration (':') More...

LONG_PTR	TypTok
	the token of the type keyword More...

LONG_PTR	ShaTok
	the token of the SHARED keyword More...

LONG_PTR	PtrTok
	the token of the first PTR keyword More...

LONG_PTR	Co1Tok
	the token of the first CONST keyword (if any) More...

LONG_PTR	Co2Tok
	the token of the second CONST keyword (if any) More...

LONG_PTR	FunTok
	type of the pre-parsed token More...

LONG_PTR	CalTok
	the token of the calling convention keyword (if any) More...

LONG_PTR	AliTok
	the token of the ALIAS keyword (if any) More...

LONG_PTR	As_Tok
	the token of the AS keyword (if no SUB) More...

LONG_PTR	ParTok
	the token of the left parenthesis of a parameter list More...

LONG_PTR	By_Tok
	the token of the declaration specifier (BYVAL / BYREF) More...

LONG_PTR	DivTok
	the token of different purposes like the STATIC keyword in a member function declaration (if any) or the LIB keyword in a normal declaration More...

LONG_PTR	Tk1
	the first token in a statment More...

LONG_PTR	EndTok
	the last token in the list More...

LONG_PTR	UserTok
	a token for customised usage in emitter-handlers More...

Parser counters, integers and pointers
Diverse variables used on different events. They inform the emitters about the state of the parser.
LONG	Po
	the current position in the input buffer Parser::Buf More...

LONG	Fin
	the last position in the input buffer Parser::Buf More...

LONG	PtrCount
	the number of PTR keywords More...

LONG	SrcBgn
	start position to export FB source More...

LONG	LineNo
	the current line in the input buffer Parser::Buf More...

LONG	LevelCount
	the level in nested blocks (one based) More...

LONG	InTree
	flag to indicate if to follow source tree #`INCLUDE`s More...

LONG	ListCount
	the current entry in a list (zero based) More...

Private Types
enum	EoS_Modi { TO_END_BLOCK , TO_END , TO_EOL , TO_COLON }
	The modi for end of statement searching. More...

Private Member Functions
Internal parsers
Functions for evaluating a construct in the FreeBASIC source code after a relevant keyword was found in the pre-parsering process. After the fine-parsing process the matching emitter-handler gets called. (Or the function EmitterIF::Error_() in case of a syntax problem. It's up to the emitter if and where the user sees the error message.)
SUB	pre_parse ()
	Pre-parse all FB source code, search relevant constructs. More...

PROPERTY_AS_STRING	USubStr ()
	Check current token position, extract word if string type. More...

FUNCTION_AS_INTEGER	getToken ()

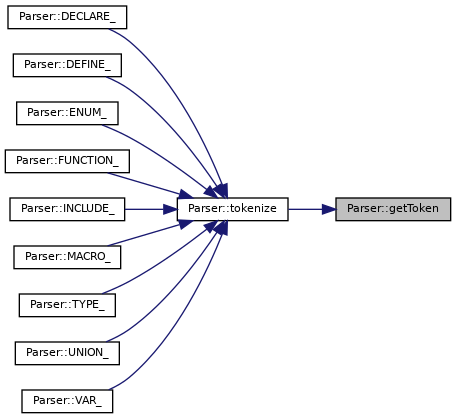

	Check word at current parser position. More...

FUNCTION_AS_INTEGER	tokenize (BYVAL_AS_EoS_Modi)

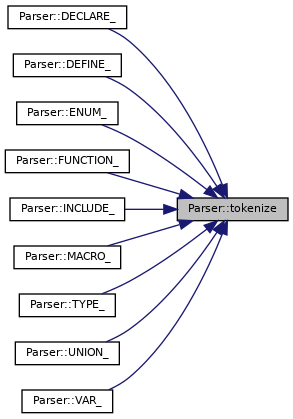

	Parse a relevant construct, create a token list. More...

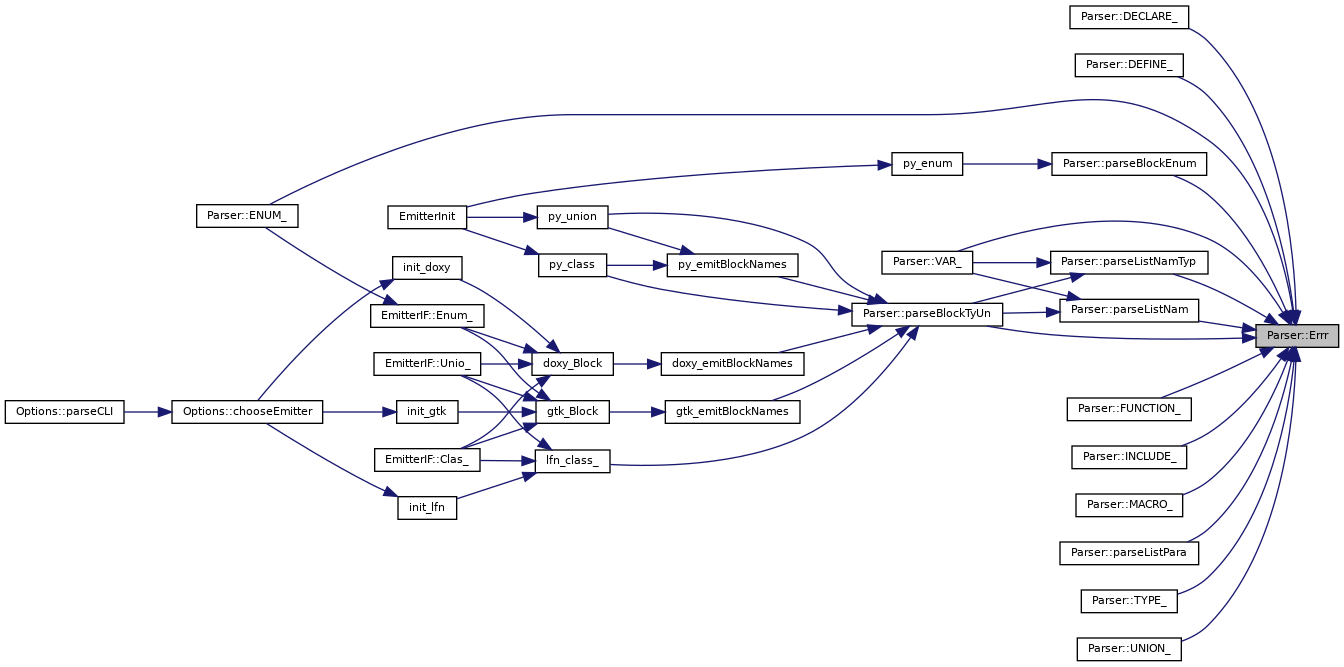

FUNCTION_AS_INTEGER	Errr (BYREF_AS_STRING)
	Emit an error message. More...

FUNCTION_AS_INTEGER	demuxNam (BYVAL_AS_INTEGER, BYVAL_AS_INTEGER)

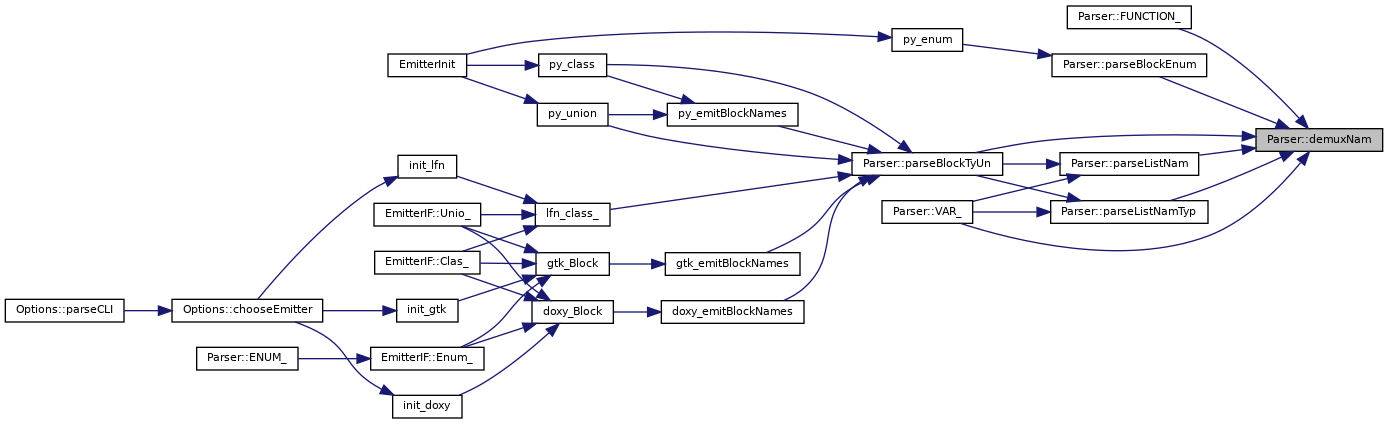

	Evaluate a name, dimension and initializer in the token list. More...

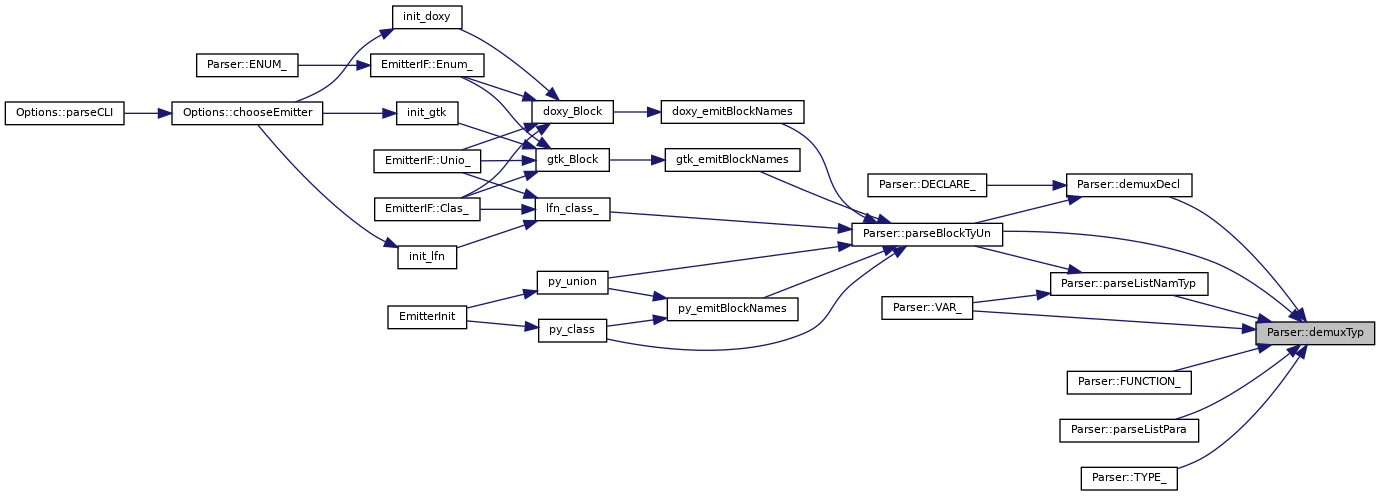

FUNCTION_AS_INTEGER	demuxTyp (BYVAL_AS_INTEGER)
	Evaluate a type declaration in the token list. More...

FUNCTION_AS_INTEGER	demuxDecl ()
	Evaluate a function declaration in the token list. More...

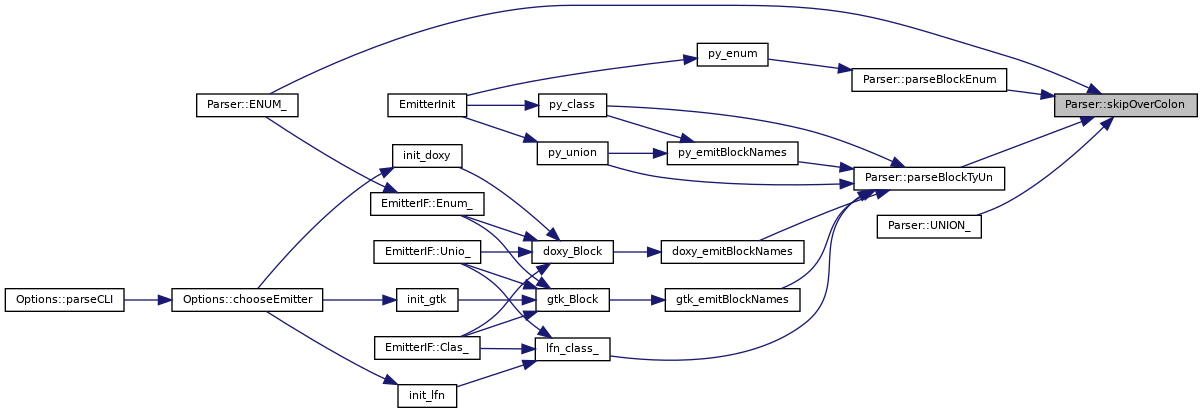

FUNCTION_AS_INTEGER	skipOverColon ()
	Move to the end of statement and one step beyond. More...

FUNCTION_AS_INTEGER	skipOverBrclo ()

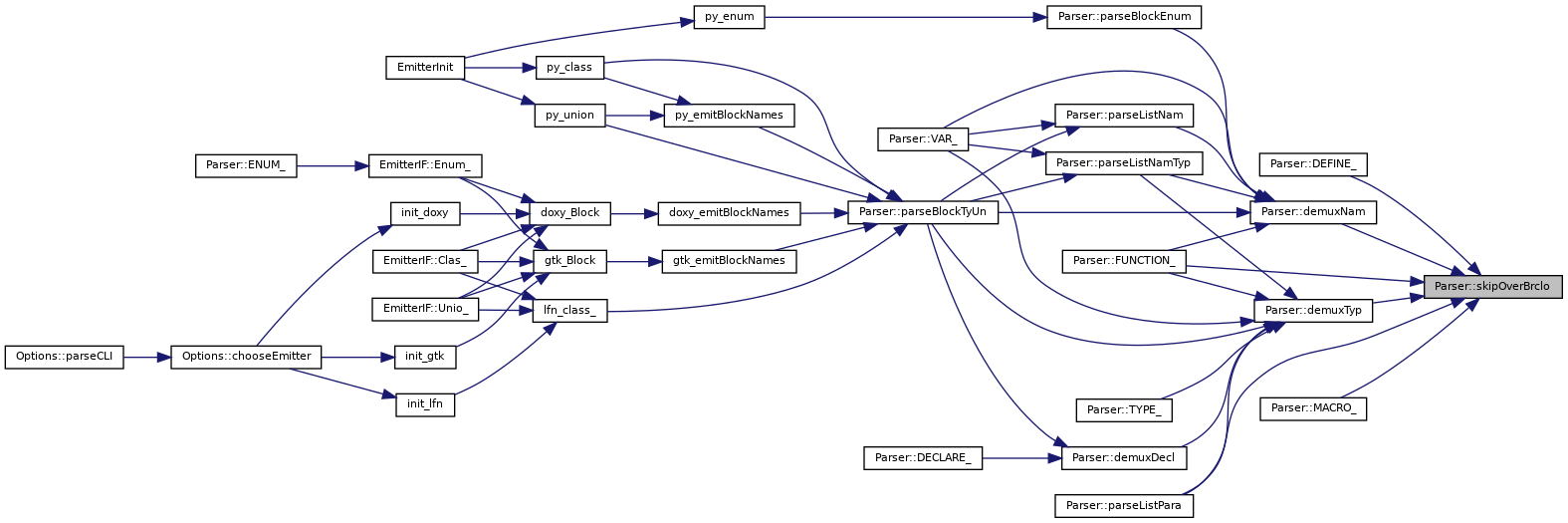

	Move to the matching right parenthesis and one step beyond. More...

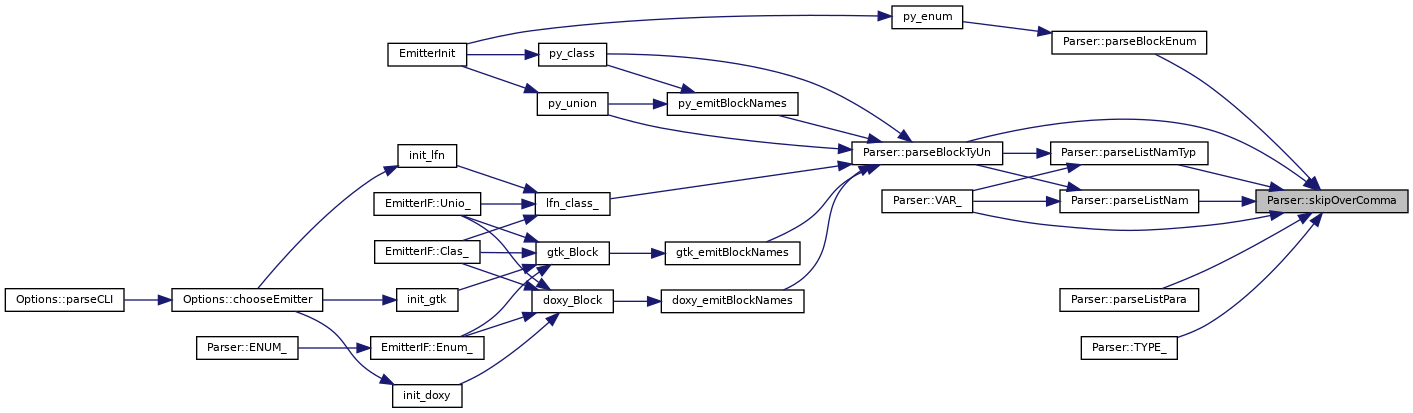

FUNCTION_AS_INTEGER	skipOverComma ()
	Move to the next comma and one step beyond. More...

FUNCTION_AS_INTEGER	VAR_ ()

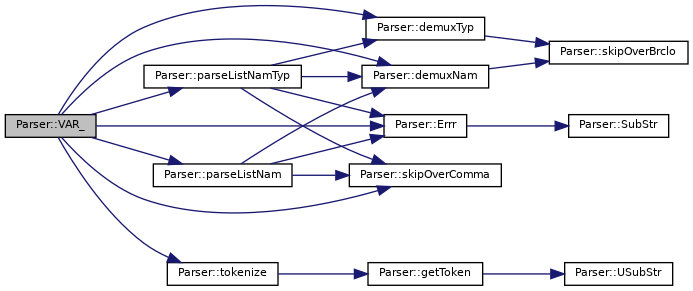

	Evaluate a variable declaration. More...

FUNCTION_AS_INTEGER	TYPE_ ()
	Evaluate a TYPE or CLASS statement. More...

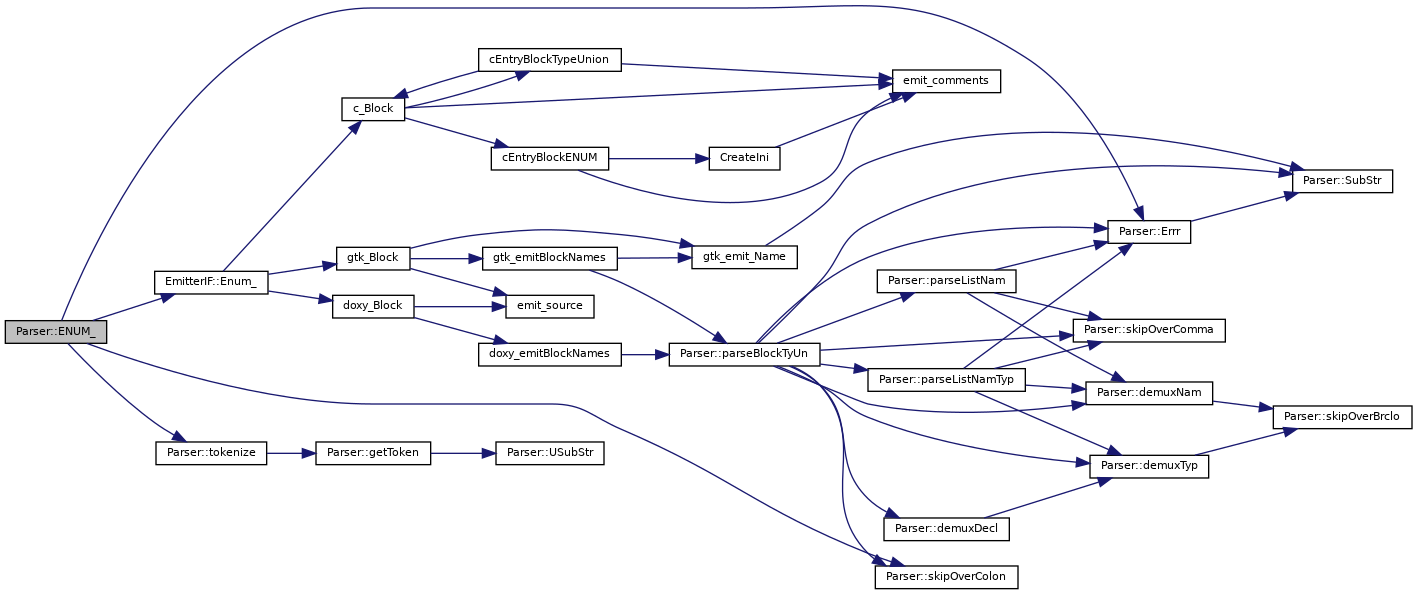

FUNCTION_AS_INTEGER	ENUM_ ()
	Evaluate an ENUM block. More...

FUNCTION_AS_INTEGER	UNION_ ()
	Evaluate a UNION block. More...

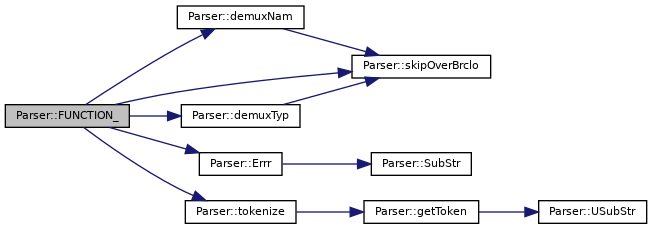

FUNCTION_AS_INTEGER	FUNCTION_ ()
	Evaluate a function. More...

FUNCTION_AS_INTEGER	DECLARE_ ()
	Evaluate a forward declaration. More...

FUNCTION_AS_INTEGER	INCLUDE_ ()
	Evaluate an #`INCLUDE` line. More...

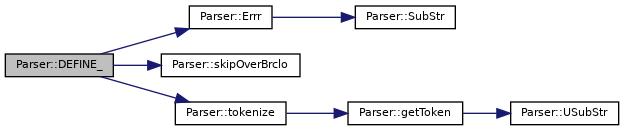

FUNCTION_AS_INTEGER	DEFINE_ ()
	Evaluate a #`DEFINE` declaration. More...

FUNCTION_AS_INTEGER	MACRO_ ()
	Evaluate a #`MACRO` declaration. More...

Private Attributes
Internal values
Variables used in pre-parsing process.
LONG	ToLast
	the type of the token before the current one More...

LONG_PTR	Tk
	the current token of the parser More...

LONG_PTR	A
	start of a word in pre-parsing More...

LONG_PTR	L
	length of a word in pre-parsing More...

EmitterIF_PTR	Emit
	the emitter interface More...

Detailed Description

The parser.

Class to handle FreeBASIC source code. A Parser allways work on exactly one input stream, comming from a file or from STDIN. The Parser does

read the source from an input channel (see StdIn(), File_())
call function EmitterIF::Init_() before parsing
pre-parse the source for relavant code fractions (see pre_parse()) and call the comments emitter-handler on the way.
fine-scan any relavant code fractions (see tokenize()) and call the matching emitter-handler for this code (done by the private functions ie. like DEFINE_(), FUNCTION_(), VAR_(), ...)
provide functions to extract elements form the source (like SubStr(), CurTok(), BitIni(), ...)
call matching emitter functions to generaate the output stream
call function EmitterIF::Exit_() after parsing

When fbdoc follows the source tree (option –tree (-t)), the function EmitterIF::Incl_() creates a new Parser for each file.

Definition at line 46 of file fbdoc_parser.bi.

Member Enumeration Documentation

◆ ParserTokens

enum Parser::ParserTokens

The tokens used by the parser.

Enumerators used to classify the type of a token found in the FreeBASIC source code. Most of them are used in equal / not equal checks, but a few are used with greater or smaller operators. Those are marked as labeled enumerators. Don't change the order (without adapting the source code).

Enumerator
MSG_STOP	end of file / token list reached
MSG_ERROR	create error message, continue parsing (labeled enumerator)
TOK_EOS	end of statement (either new line or `":"`, labeled enumerator)
TOK_BRCLO	right parenthesis
TOK_COMMA	a comma (labeled enumerator)
TOK_KLOPN	left other bracket
TOK_KLCLO	right other bracket
TOK_DOT	a dot
TOK_MEOP	the pointer to memory access operator "->"
TOK_3DOT	three dots
TOK_QUOTE	a string constant (including quotes)
TOK_LATTE	the '#' character
TOK_BROPN	left parenthesis (labeled enumerator)
TOK_EQUAL	the '=' character
TOK_ABST	the ABSTRACT keyword (labeled enumerator)
TOK_ALIA	the ALIAS keyword
TOK_AS	the AS keyword
TOK_BYRE	the BYREF keyword
TOK_BYVA	the BYVAL keyword
TOK_CAST	the CAST keyword
TOK_CDEC	the CDECL keyword
TOK_CLAS	the CLASS keyword
TOK_COMM	the COMMON keyword
TOK_CONS	the CONST keyword
TOK_DECL	the DECLARE keyword
TOK_DEFI	the #`DEFINE` keyword
TOK_DIM	the DIM keyword
TOK_END	the END keyword
TOK_ENUM	the ENUM keyword
TOK_EXDS	the EXTENDS keyword
TOK_EMAC	the #`ENDMACRO` keyword
TOK_EXRN	the EXTERN keyword
TOK_EXPO	the EXPORT keyword
TOK_INCL	the #`INCLUDE` keyword
TOK_LIB	the LIB keyword
TOK_MACR	the #`MACRO` keyword
TOK_WITH	the WITH keyword
TOK_NAMS	the NAMESPACE keyword
TOK_ONCE	the ONCE keyword
TOK_OVER	the OVERLOAD keyword
TOK_PASC	the PASCAL keyword
TOK_PRIV	the PRIVATE keyword
TOK_PROT	the PROTECTED keyword
TOK_RDIM	the REDIM keyword
TOK_PTR	the PTR or POINTER keyword
TOK_PEEK	the PEEK keyword
TOK_PUBL	the PUBLIC keyword
TOK_SCOP	the SCOPE keyword
TOK_SHAR	the SHARED keyword
TOK_PRES	the PRESERVE keyword
TOK_STAT	the STATIC keyword
TOK_STCL	the STDCALL keyword
TOK_TYPE	the TYPE keyword
TOK_UNIO	the UNION keyword
TOK_VAR	the VAR keyword
TOK_VIRT	the VIRTUAL keyword
TOK_FUNC	the FUNCTION keyword
TOK_FILD	the FIELD keyword
TOK_OPER	the OPERATOR keyword
TOK_PROP	the PROPERTY keyword
TOK_SUB	the SUB keyword
TOK_CTOR	the CONSTRUCTOR keyword
TOK_DTOR	the DESTRUCTOR keyword
TOK_BYTE	the BYTE data type (labeled enumerator)
TOK_DOUB	the DOUBLE data type
TOK_INT	the INTEGER data type
TOK_LONG	the LONG data type
TOK_LINT	the LONGINT data type
TOK_STRI	the STRING data type
TOK_SHOR	the SHORT data type
TOK_SING	the SINGLE data type
TOK_UBYT	the UBYTE data type
TOK_ULNG	the ULONG data type
TOK_ULIN	the ULONGINT data type
TOK_UINT	the UINTEGER data type
TOK_USHO	the USHORT data type
TOK_WSTR	the ZSTRING data type
TOK_ZSTR	the ZSTRING data type
TOK_ANY	the ANY keyword
TOK_WORD	a word (labeled enumerator)
TOK_COMSL	line end comment (single line, labeled enumerator)
TOK_COMML	multi line comment

Definition at line 58 of file fbdoc_parser.bi.

◆ EoS_Modi

enum Parser::EoS_Modi

private

The modi for end of statement searching.

Enumerators used in internal in the parser to specify where to stop to tokenize the input buffer

Enumerator
TO_END_BLOCK	tokenize to the end of the structure
TO_END	stop at the end of the token list
TO_EOL	stop at the next line end
TO_COLON	stop at the next line end or colon

Definition at line 280 of file fbdoc_parser.bi.

Constructor & Destructor Documentation

◆ Parser()

Parser::Parser ( BYVAL_AS_EmitterIF_PTR Em )

The constructor.

Parameters

Em	A pointer to the emitter interface to use

Initialize the start values. We get the pointer to the EmitterIF to use and we create a short token list (just two entries) for usage inside the parser. This token list is static and it doesn't change its adress (unlike the list Parser::Tok that may shift when growing).

Definition at line 23 of file fbdoc_parser.bas.

Member Function Documentation

◆ File_()

SUB Parser::File_	(	BYREF_AS_STRING	File,
		BYVAL_AS_INTEGER	Tree
	)

Read a buffer from a file and parse.

Parameters

File	The name of the file to translate
Tree	If to follow source tree #`INCLUDE`

Returns: The translated code (if any)

Read a file in to input buffer. Start detailed parsing on each relevant construct. Otherwise skip the current line. Export comments on the way. Do nothing if file doesn't exist or isn't readable.

Definition at line 1077 of file fbdoc_parser.bas.

◆ StdIn()

SUB Parser::StdIn ( )

Read a buffer from pipe STDIN and parse.

Returns: The translated code (or an informal text)

Get all characters from STDIN. Start the parsing process. If there is no input (an empty line) then call function EmitterIF::Empty_(). (Useful for generating file templates in mode –geany-mode (-g).)

Definition at line 1103 of file fbdoc_parser.bas.

Here is the caller graph for this function:

◆ Include()

SUB Parser::Include ( BYVAL_AS_STRING N )

Start a new parser to #INCLUDE a file.

Parameters

N	The (path, if any, and) file name

This procedure is used by the emitter handlers for #INCLUDE statements. It checks if the file has been done already or can get opened. If one of these fails a message gets sent to STDERR and the file gets skipped.

Otherwise a new parser gets started to operate on that file.

Definition at line 1228 of file fbdoc_parser.bas.

Here is the caller graph for this function:

◆ writeOut()

SUB Parser::writeOut ( BYREF_AS_STRING T )

Write a piece of output (for external emitters only)

Parameters

T	The text to write

External emitters cannot use the streams opened in the main program directly. They have to send text to this procedure to use the standard output stream.

Definition at line 1143 of file fbdoc_parser.bas.

◆ CurTok()

PROPERTY_AS_LONG_PTR Parser::CurTok ( )

The current token.

Returns: The token the parser currently stopping at

This property returns the parser token (where the parser currently stops).

Definition at line 1155 of file fbdoc_parser.bas.

◆ BitIni()

PROPERTY_AS_STRING Parser::BitIni ( )

The initialization of a bitfield.

Returns: The bitfield initialization

This property returns the initialization of a bitfield in a TYPE / UNION block. The size of the bitfield may either be an integer number or a macro (= TOK_WORD).

Definition at line 1167 of file fbdoc_parser.bas.

◆ SubStr() [1/2]

PROPERTY_AS_STRING Parser::SubStr ( )

Context of current token.

Returns: The context of the current token

This property returns the context of the current token from the input buffer.

Definition at line 1186 of file fbdoc_parser.bas.

Here is the caller graph for this function:

◆ SubStr() [2/2]

PROPERTY_AS_STRING Parser::SubStr ( BYVAL_AS_LONG_PTR T )

Context of current token at position T.

Parameters

T	The token to read

Returns: The context of the token T

This property returns the context of the token at position T from the input buffer.

Definition at line 1199 of file fbdoc_parser.bas.

◆ parseListNam()

SUB Parser::parseListNam ( BYVAL_AS_EmitFunc Export_ )

Evaluate a list of names.

Parameters

Export_ The function to call on each find

Scan the token list for variable declarations and call the emitter for each find (ie. for constructs like DIM AS BYTE Nam1, Nam2(5) = {0,1,2,3,4,5}, Nam3, ...).

Definition at line 304 of file fbdoc_parser.bas.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parseListNamTyp()

SUB Parser::parseListNamTyp ( BYVAL_AS_EmitFunc Export_ )

Evaluate a list of declarations.

Parameters

Export_ The function to call on each find

Scan the token list for variable declarations and call the emitter for each find (ie. for constructs like DIM Nam1 AS BYTE, Nam2(5) AS UBYTE = {0,1,2,3,4,5}, Nam3 AS STRING, ...).

Definition at line 323 of file fbdoc_parser.bas.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parseListPara()

SUB Parser::parseListPara ( BYVAL_AS_EmitFunc Export_ )

Evaluate a parameter list.

Parameters

Export_ The function to call on each find

Scan the token list for a parameter list. Evaluate declaration specifiers (BYVAL / BYREF) and handle ellipsis, parameters without name, initializers and empty lists.

Definition at line 466 of file fbdoc_parser.bas.

Here is the call graph for this function:

◆ parseBlockEnum()

SUB Parser::parseBlockEnum ( BYVAL_AS_EmitFunc Export_ )

Evaluate the context of an ENUM block.

Parameters

Export_ The function to call on each find

The emitter calls us to evaluate statements inside an ENUM block. So we stop after finding a statement and call the emitter handler one-by-one.

Definition at line 342 of file fbdoc_parser.bas.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parseBlockTyUn()

SUB Parser::parseBlockTyUn ( BYVAL_AS_EmitFunc Export_ )

Evaluate the context of a block.

Parameters

Export_ The function to call on each find

The emitter calls us to evaluate constructs inside a block (TYPE / UNION). So we stop after finding a statement and call the emitter handler one-by-one.

Definition at line 370 of file fbdoc_parser.bas.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pre_parse()

SUB Parser::pre_parse ( )

private

Pre-parse all FB source code, search relevant constructs.

Search the input buffer for a relevant construct. Start detailed parsing on each relevant construct. Otherways skip the current line. Export comments on the way.

Definition at line 1011 of file fbdoc_parser.bas.

◆ USubStr()

PROPERTY_AS_STRING Parser::USubStr ( )

private

Check current token position, extract word if string type.

Returns: The current word in upper case

This property returns the context of the current parser position in the input buffer in upper case characters.

Definition at line 1212 of file fbdoc_parser.bas.

Here is the caller graph for this function:

◆ getToken()

FUNCTION_AS_INTEGER Parser::getToken ( )

private

Check word at current parser position.

Returns: : The token for the word at current position

This function checks the word at the current parser position. In case of a keyword the matching token gets returned. Otherwise Parser::TOK_WORD gets returned.

Definition at line 776 of file fbdoc_parser.bas.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ tokenize()

FUNCTION_AS_INTEGER Parser::tokenize ( BYVAL_AS_EoS_Modi Stop_ )

private

Parse a relevant construct, create a token list.

Parameters

Stop_ The condition where to end parsing

Returns: The length of the token list in byte (at least 8)

Start at the current position of the input buffer to check each character. Sort the input in to a token list. The token list contains three values in each entry: the type of the input, its start and its length.

The end of this process gets specified by the Stop_ parameter. It's one of the EoS_Modi enumerators.

Definition at line 926 of file fbdoc_parser.bas.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Errr()

FUNCTION_AS_INTEGER Parser::Errr ( BYREF_AS_STRING E )

private

Emit an error message.

Parameters

E	The reason for the error message

Returns: MSG_ERROR (and MSG_STOP at end of file)

Create an error message and call the error function of the emitter. It depends on the emitter if and where the error gets shown.

Definition at line 728 of file fbdoc_parser.bas.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ demuxNam()

FUNCTION_AS_INTEGER Parser::demuxNam	(	BYVAL_AS_INTEGER	MinTk = `TOK_WORD`,
		BYVAL_AS_INTEGER	DeclMod = `0`
	)

private

Evaluate a name, dimension and initializer in the token list.

Parameters

MinTk	The token to start at
DeclMod	The modus (normal or declaration)

Returns: The (doubled) number of steps gone in the token list (or MSG_ERROR on error and MSG_STOP on the end of the token list)

Check the token list for a declaration of a name, starting at the current token (ie. behind a VAR keyword). Also checking for parenthesis to specify a dimension and the equal '=' character of an initializer. After execution the current position is at the next token after the equal character, or behind the closing parenthesis, or the name. An error is returned if there is no word at the current position.

Definition at line 114 of file fbdoc_parser.bas.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ demuxTyp()

FUNCTION_AS_INTEGER Parser::demuxTyp ( BYVAL_AS_INTEGER DeclMod = 0 )

private

Evaluate a type declaration in the token list.

Parameters

DeclMod The modus (normal or declaration)

Returns: The (doubled) number of steps gone in the token list (or MSG_ERROR on error and MSG_STOP on the end of the token list)

Check the token list for a type declaration. Starting at the AS statement we read the name of the type and all following 'PTR' statements. The type may be a SUB, FUNCTION, PROPERTY, ... After execution the current position is at the next token behind the last PTR, or at the type name, or at the closing parenthesis. An error is returned if there is no word at the current position, or the token list doesn't start with 'AS', or the next token isn't a word.

Definition at line 212 of file fbdoc_parser.bas.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ demuxDecl()

FUNCTION_AS_INTEGER Parser::demuxDecl ( )

private

Evaluate a function declaration in the token list.

Returns: The the result of demuxTyp() (or MSG_ERROR on error and MSG_STOP on the end of the token list)

Pre-check the token list for a declaration of a function, starting at the token behind the DECLARE statement. When OK, use demuxTyp() to evaluate the type of the declaration.

Definition at line 170 of file fbdoc_parser.bas.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ skipOverColon()

FUNCTION_AS_INTEGER Parser::skipOverColon ( )

private

Move to the end of statement and one step beyond.

Returns: The (doubled) number of steps gone in the token list (or MSG_ERROR on error and MSG_STOP on the end of the token list)

Step through the token list and search for the end of the current statement. Then walk one step beyond, if not end of token list.

Definition at line 90 of file fbdoc_parser.bas.

Here is the caller graph for this function:

◆ skipOverBrclo()

FUNCTION_AS_INTEGER Parser::skipOverBrclo ( )

private

Move to the matching right parenthesis and one step beyond.

Returns: The (doubled) number of steps gone in the token list (or MSG_ERROR on error and MSG_STOP on the end of the token list)

Step through the token list and search for the next right parenthesis, skipping nested pairs of paranethesis. When we find a matching right parenthesis we walk one step beyond. Else we stop at the next colon or line end.

Definition at line 70 of file fbdoc_parser.bas.

Here is the caller graph for this function:

◆ skipOverComma()

FUNCTION_AS_INTEGER Parser::skipOverComma ( )

private

Move to the next comma and one step beyond.

Returns: The (doubled) number of steps gone in the token list (or MSG_ERROR on error and MSG_STOP on the end of the token list)

We step trough the token list and search for the next comma, skipping nested pairs of parenthesis. When we find a comma we walk one step beyond. Otherwise we stop at the next right parenthesis or the next colon or line end.

Definition at line 47 of file fbdoc_parser.bas.

Here is the caller graph for this function:

◆ VAR_()

FUNCTION_AS_INTEGER Parser::VAR_ ( )

private

Evaluate a variable declaration.

Returns: MSG_ERROR (or MSG_STOP on the end of the token list)

The pre-parser found a VAR, DIM, REDIM, CONST, EXTERN, COMMON or STATIC keyword. We tokenize the current line and send the result to the emitter, or we call Errr() on syntax problems.

Definition at line 544 of file fbdoc_parser.bas.

Here is the call graph for this function:

◆ TYPE_()

FUNCTION_AS_INTEGER Parser::TYPE_ ( )

private

Evaluate a TYPE or CLASS statement.

Returns: MSG_ERROR (or MSG_STOP on the end of the token list)

The pre-parser found a TYPE or CLASS keyword. In case of TYPE we tokenize the line and check if it is an alias declaration. In that case we call the emitter for a declaration on that single line. Otherwise we tokenize the complete block and call the emitter for a TYPE block. Or we call Errr() on syntax problems.

Note: the C emitter creates

'typedef Typ Nam' for 'TYPE AS Typ Nam'
'typedef struct Typ Nam' for 'TYPE Nam AS Typ'

Definition at line 506 of file fbdoc_parser.bas.

Here is the call graph for this function:

◆ ENUM_()

FUNCTION_AS_INTEGER Parser::ENUM_ ( )

private

Evaluate an ENUM block.

Returns: MSG_ERROR (or MSG_STOP on the end of the token list)

The pre-parser found an ENUM keyword. We tokenize the context of the complete block and call the emitter, or we call Errr() on syntax problems.

Definition at line 583 of file fbdoc_parser.bas.

Here is the call graph for this function:

◆ UNION_()

FUNCTION_AS_INTEGER Parser::UNION_ ( )

private

Evaluate a UNION block.

Returns: MSG_ERROR (or MSG_STOP on the end of the token list)

The pre-parser found an UNION keyword. We tokenize the context of the complete block and call the emitter, or we call Errr() on syntax problems.

Definition at line 601 of file fbdoc_parser.bas.

Here is the call graph for this function:

◆ FUNCTION_()

FUNCTION_AS_INTEGER Parser::FUNCTION_ ( )

private

Evaluate a function.

Returns: MSG_ERROR (or MSG_STOP on the end of the token list)

The pre-parser found a SUB, FUNCTION, CONSTRUCTOR, DESTRUCTOR, PROPERTY or OPERATOR keyword. We tokenize the complete block, evaluate the name and type and send the result to the emitter, or we call Errr() on syntax problems.

Definition at line 621 of file fbdoc_parser.bas.

Here is the call graph for this function:

◆ DECLARE_()

FUNCTION_AS_INTEGER Parser::DECLARE_ ( )

private

Evaluate a forward declaration.

Returns: MSG_ERROR (or MSG_STOP on the end of the token list)

The pre-parser found a DECLARE keyword. We tokenize the current line and send the result to the emitter, or we call Errr() on syntax problems.

Definition at line 654 of file fbdoc_parser.bas.

Here is the call graph for this function:

◆ INCLUDE_()

FUNCTION_AS_INTEGER Parser::INCLUDE_ ( )

private

Evaluate an #INCLUDE line.

Returns: MSG_ERROR (or MSG_STOP on the end of the token list)

The pre-parser found an #INCLUDE line. We tokenize the line and call the emitter, or we call Errr() handler on syntax problems. It's up to the emitter function to follow the source tree (= create a new parser and load the file).

Definition at line 671 of file fbdoc_parser.bas.

Here is the call graph for this function:

◆ DEFINE_()

FUNCTION_AS_INTEGER Parser::DEFINE_ ( )

private

Evaluate a #DEFINE declaration.

Returns: MSG_ERROR (or MSG_STOP on the end of the token list)

The pre-parser found a #DEFINE line. We tokenize the line and call the emitter, or we call Errr() handler on syntax problems.

Definition at line 706 of file fbdoc_parser.bas.

Here is the call graph for this function:

◆ MACRO_()

FUNCTION_AS_INTEGER Parser::MACRO_ ( )

private

Evaluate a #MACRO declaration.

Returns: MSG_ERROR (or MSG_STOP on the end of the token list)

The pre-parser found a #MACRO block. We tokenize the block and call the emitter, or we call Errr() handler on syntax problems.

Definition at line 687 of file fbdoc_parser.bas.

Here is the call graph for this function:

Member Data Documentation

◆ InPath

STRING Parser::InPath = ""

path of current of input file (option –tree (-t))

Definition at line 155 of file fbdoc_parser.bi.

◆ Fnam

STRING Parser::Fnam

the name of the input file

Definition at line 156 of file fbdoc_parser.bi.

◆ Buf

STRING Parser::Buf

the input buffer

Definition at line 157 of file fbdoc_parser.bi.

◆ ErrMsg

STRING Parser::ErrMsg

an error message

Definition at line 158 of file fbdoc_parser.bi.

◆ Tok

STRING Parser::Tok

the token list (binaries)

Definition at line 159 of file fbdoc_parser.bi.

◆ BlockNam

STRING Parser::BlockNam

the name of a block (ENUM, UNION, TYPE)

Definition at line 160 of file fbdoc_parser.bi.

◆ StaTok

LONG_PTR Parser::StaTok

the pre-parsed token

Definition at line 183 of file fbdoc_parser.bi.

◆ NamTok

LONG_PTR Parser::NamTok

the name token of the construct

Definition at line 184 of file fbdoc_parser.bi.

◆ DimTok

LONG_PTR Parser::DimTok

the token of the left parenthesis of a dimension

Definition at line 185 of file fbdoc_parser.bi.

◆ IniTok

LONG_PTR Parser::IniTok

the start character of an initializer ('=')

Definition at line 186 of file fbdoc_parser.bi.

◆ BitTok

LONG_PTR Parser::BitTok

the start character of a bitfiled declaration (':')

Definition at line 187 of file fbdoc_parser.bi.

◆ TypTok

LONG_PTR Parser::TypTok

the token of the type keyword

Definition at line 188 of file fbdoc_parser.bi.

◆ ShaTok

LONG_PTR Parser::ShaTok

the token of the SHARED keyword

Definition at line 189 of file fbdoc_parser.bi.

◆ PtrTok

LONG_PTR Parser::PtrTok

the token of the first PTR keyword

Definition at line 190 of file fbdoc_parser.bi.

◆ Co1Tok

LONG_PTR Parser::Co1Tok

the token of the first CONST keyword (if any)

Definition at line 191 of file fbdoc_parser.bi.

◆ Co2Tok

LONG_PTR Parser::Co2Tok

the token of the second CONST keyword (if any)

Definition at line 192 of file fbdoc_parser.bi.

◆ FunTok

LONG_PTR Parser::FunTok

type of the pre-parsed token

Definition at line 193 of file fbdoc_parser.bi.

◆ CalTok

LONG_PTR Parser::CalTok

the token of the calling convention keyword (if any)

Definition at line 194 of file fbdoc_parser.bi.

◆ AliTok

LONG_PTR Parser::AliTok

the token of the ALIAS keyword (if any)

Definition at line 195 of file fbdoc_parser.bi.

◆ As_Tok

LONG_PTR Parser::As_Tok

the token of the AS keyword (if no SUB)

Definition at line 196 of file fbdoc_parser.bi.

◆ ParTok

LONG_PTR Parser::ParTok

the token of the left parenthesis of a parameter list

Definition at line 197 of file fbdoc_parser.bi.

◆ By_Tok

LONG_PTR Parser::By_Tok

the token of the declaration specifier (BYVAL / BYREF)

Definition at line 198 of file fbdoc_parser.bi.

◆ DivTok

LONG_PTR Parser::DivTok

the token of different purposes like the STATIC keyword in a member function declaration (if any) or the LIB keyword in a normal declaration

Definition at line 199 of file fbdoc_parser.bi.

◆ Tk1

LONG_PTR Parser::Tk1

the first token in a statment

Definition at line 200 of file fbdoc_parser.bi.

◆ EndTok

LONG_PTR Parser::EndTok

the last token in the list

Definition at line 201 of file fbdoc_parser.bi.

◆ UserTok

LONG_PTR Parser::UserTok

a token for customised usage in emitter-handlers

Definition at line 202 of file fbdoc_parser.bi.

◆ Po

LONG Parser::Po

the current position in the input buffer Parser::Buf

Definition at line 214 of file fbdoc_parser.bi.

◆ Fin

LONG Parser::Fin

the last position in the input buffer Parser::Buf

Definition at line 215 of file fbdoc_parser.bi.

◆ PtrCount

LONG Parser::PtrCount

the number of PTR keywords

Definition at line 216 of file fbdoc_parser.bi.

◆ SrcBgn

LONG Parser::SrcBgn

start position to export FB source

Definition at line 217 of file fbdoc_parser.bi.

◆ LineNo

LONG Parser::LineNo

the current line in the input buffer Parser::Buf

Definition at line 218 of file fbdoc_parser.bi.

◆ LevelCount

LONG Parser::LevelCount

the level in nested blocks (one based)

Definition at line 219 of file fbdoc_parser.bi.

◆ InTree

LONG Parser::InTree

flag to indicate if to follow source tree #INCLUDEs

Definition at line 220 of file fbdoc_parser.bi.

◆ ListCount

LONG Parser::ListCount

the current entry in a list (zero based)

Definition at line 221 of file fbdoc_parser.bi.

◆ ToLast

LONG Parser::ToLast

private

the type of the token before the current one

Definition at line 294 of file fbdoc_parser.bi.

◆ Tk

LONG_PTR Parser::Tk

private

the current token of the parser

Definition at line 297 of file fbdoc_parser.bi.

◆ A

LONG_PTR Parser::A

private

start of a word in pre-parsing

Definition at line 298 of file fbdoc_parser.bi.

◆ L

LONG_PTR Parser::L

private

length of a word in pre-parsing

Definition at line 299 of file fbdoc_parser.bi.

◆ Emit

EmitterIF_PTR Parser::Emit

private

the emitter interface

Definition at line 301 of file fbdoc_parser.bi.

The documentation for this class was generated from the following files:

src/bas/fbdoc_parser.bi
src/bas/fbdoc_parser.bas

Public Types

Public Member Functions

Public Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ ParserTokens

◆ EoS_Modi

Constructor & Destructor Documentation

◆ Parser()

Member Function Documentation

◆ File_()

◆ StdIn()

◆ Include()

◆ writeOut()

◆ CurTok()

◆ BitIni()

◆ SubStr() [1/2]

◆ SubStr() [2/2]

◆ parseListNam()

◆ parseListNamTyp()

◆ parseListPara()

◆ parseBlockEnum()

◆ parseBlockTyUn()

◆ pre_parse()

◆ USubStr()

◆ getToken()

◆ tokenize()

◆ Errr()

◆ demuxNam()

◆ demuxTyp()

◆ demuxDecl()

◆ skipOverColon()

◆ skipOverBrclo()

◆ skipOverComma()

◆ VAR_()

◆ TYPE_()

◆ ENUM_()

◆ UNION_()

◆ FUNCTION_()

◆ DECLARE_()

◆ INCLUDE_()

◆ DEFINE_()

◆ MACRO_()

Member Data Documentation

◆ InPath

◆ Fnam

◆ Buf

◆ ErrMsg

◆ Tok

◆ BlockNam

◆ StaTok

◆ NamTok

◆ DimTok

◆ IniTok

◆ BitTok

◆ TypTok

◆ ShaTok

◆ PtrTok

◆ Co1Tok

◆ Co2Tok

◆ FunTok

◆ CalTok

◆ AliTok

◆ As_Tok

◆ ParTok

◆ By_Tok

◆ DivTok

◆ Tk1

◆ EndTok

◆ UserTok

◆ Po

◆ Fin

◆ PtrCount

◆ SrcBgn

◆ LineNo

◆ LevelCount

◆ InTree
