Pre-defined macros to handle the beagle bone header pins. More...

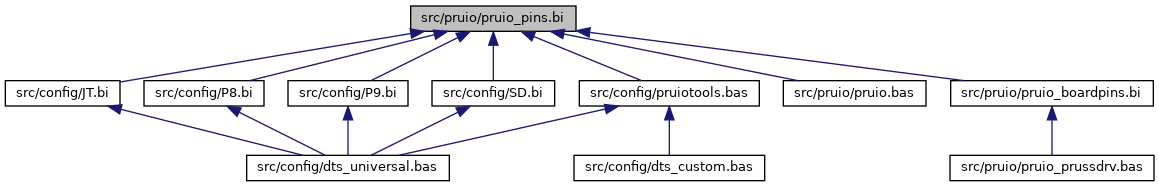

Go to the source code of this file.
Macros | |
| #define | P8_03 /* &h06 */ |
| CPU ball number for pin 3 on header 8 (emmc2) | |
| #define | P8_04 /* &h07 */ |
| CPU ball number for pin 4 on header 8 (emmc2) | |
| #define | P8_05 /* &h02 */ |
| CPU ball number for pin 5 on header 8 (emmc2) | |
| #define | P8_06 /* &h03 */ |
| CPU ball number for pin 6 on header 8 (emmc2) | |
| #define | P8_07 /* &h24' 36 */ |
| CPU ball number for pin 7 on header 8. | |
| #define | P8_08 /* &h25 '37 */ |
| CPU ball number for pin 8 on header 8. | |
| #define | P8_09 /* &h27 '39 */ |
| CPU ball number for pin 9 on header 8. | |
| #define | P8_10 /* &h26 '38 */ |
| CPU ball number for pin 10 on header 8. | |
| #define | P8_11 /* &h0D '13 */ |
| CPU ball number for pin 11 on header 8. | |
| #define | P8_12 /* &h0C '12 */ |
| CPU ball number for pin 12 on header 8. | |
| #define | P8_13 /* &h09 '9 */ |
| CPU ball number for pin 13 on header 8. | |
| #define | P8_14 /* &h0A '10 */ |
| CPU ball number for pin 14 on header 8. | |
| #define | P8_15 /* &h0F '15 */ |
| CPU ball number for pin 15 on header 8. | |
| #define | P8_16 /* &h0E '14 */ |
| CPU ball number for pin 16 on header 8. | |
| #define | P8_17 /* &h0B '11 */ |
| CPU ball number for pin 17 on header 8. | |
| #define | P8_18 /* &h23 '35 */ |
| CPU ball number for pin 18 on header 8. | |
| #define | P8_19 /* &h08 '8 */ |
| CPU ball number for pin 19 on header 8. | |
| #define | P8_20 /* &h21 '33 */ |
| CPU ball number for pin 20 on header 8 (emmc2) | |
| #define | P8_21 /* &h20 '32 */ |
| CPU ball number for pin 21 on header 8 (emmc2) | |
| #define | P8_22 /* &h05 '5 */ |
| CPU ball number for pin 22 on header 8 (emmc2) | |
| #define | P8_23 /* &h04 '4 */ |
| CPU ball number for pin 23 on header 8 (emmc2) | |
| #define | P8_24 /* &h01 '1 */ |
| CPU ball number for pin 24 on header 8 (emmc2) | |
| #define | P8_25 /* &h00 '0 */ |
| CPU ball number for pin 25 on header 8 (emmc2) | |
| #define | P8_26 /* &h1F '31 */ |
| CPU ball number for pin 26 on header 8. | |
| #define | P8_27 /* &h38 '56 */ |
| CPU ball number for pin 27 on header 8 (hdmi) | |
| #define | P8_28 /* &h3A '58 */ |
| CPU ball number for pin 28 on header 8 (hdmi) | |
| #define | P8_29 /* &h39 '57 */ |
| CPU ball number for pin 29 on header 8 (hdmi) | |
| #define | P8_30 /* &h3B '59 */ |
| CPU ball number for pin 30 on header 8 (hdmi) | |
| #define | P8_31 /* &h36 '54 */ |
| CPU ball number for pin 31 on header 8 (hdmi) | |
| #define | P8_32 /* &h37 '55 */ |
| CPU ball number for pin 32 on header 8 (hdmi) | |
| #define | P8_33 /* &h35 '53 */ |
| CPU ball number for pin 33 on header 8 (hdmi) | |
| #define | P8_34 /* &h33 '51 */ |
| CPU ball number for pin 34 on header 8 (hdmi) | |
| #define | P8_35 /* &h34 '52 */ |
| CPU ball number for pin 35 on header 8 (hdmi) | |
| #define | P8_36 /* &h32 '50 */ |
| CPU ball number for pin 36 on header 8 (hdmi) | |
| #define | P8_37 /* &h30 '48 */ |
| CPU ball number for pin 37 on header 8 (hdmi) | |
| #define | P8_38 /* &h31 '49 */ |
| CPU ball number for pin 38 on header 8 (hdmi) | |
| #define | P8_39 /* &h2E '46 */ |
| CPU ball number for pin 39 on header 8 (hdmi) | |
| #define | P8_40 /* &h2F '47 */ |
| CPU ball number for pin 40 on header 8 (hdmi) | |
| #define | P8_41 /* &h2C '44 */ |
| CPU ball number for pin 41 on header 8 (hdmi) | |
| #define | P8_42 /* &h2D '45 */ |
| CPU ball number for pin 42 on header 8 (hdmi) | |
| #define | P8_43 /* &h2A '42 */ |
| CPU ball number for pin 43 on header 8 (hdmi) | |
| #define | P8_44 /* &h2B '43 */ |
| CPU ball number for pin 44 on header 8 (hdmi) | |
| #define | P8_45 /* &h28 '40 */ |
| CPU ball number for pin 45 on header 8 (hdmi) | |
| #define | P8_46 /* &h29 '41 */ |
| CPU ball number for pin 46 on header 8 (hdmi) | |
| #define | P9_11 /* &h1C '28 */ |
| CPU ball number for pin 11 on header 9. | |
| #define | P9_12 /* &h1E '30 */ |
| CPU ball number for pin 12 on header 9. | |
| #define | P9_13 /* &h1D '29 */ |
| CPU ball number for pin 13 on header 9. | |
| #define | P9_14 /* &h12 '18 */ |
| CPU ball number for pin 14 on header 9. | |
| #define | P9_15 /* &h10 '16 */ |
| CPU ball number for pin 15 on header 9. | |
| #define | P9_16 /* &h13 '19 */ |
| CPU ball number for pin 16 on header 9. | |
| #define | P9_17 /* &h57 '87 */ |
| CPU ball number for pin 17 on header 9. | |
| #define | P9_18 /* &h56 '86 */ |
| CPU ball number for pin 18 on header 9. | |
| #define | P9_19 /* &h5F '95 */ |
| CPU ball number for pin 19 on header 9 (i2c2) | |
| #define | P9_20 /* &h5E '94 */ |
| CPU ball number for pin 20 on header 9 (i2c2) | |
| #define | P9_21 /* &h55 '85 */ |
| CPU ball number for pin 21 on header 9. | |
| #define | P9_22 /* &h54 '84 */ |
| CPU ball number for pin 22 on header 9. | |
| #define | P9_23 /* &h11 '17 */ |
| CPU ball number for pin 23 on header 9. | |
| #define | P9_24 /* &h61 '97 */ |
| CPU ball number for pin 24 on header 9. | |
| #define | P9_25 /* &h6B '107 */ |
| CPU ball number for pin 25 on header 9 (mcasp0) | |
| #define | P9_26 /* &h60 '96 */ |
| CPU ball number for pin 26 on header 9. | |
| #define | P9_27 /* &h69 '105 */ |
| CPU ball number for pin 27 on header 9. | |
| #define | P9_28 /* &h67 '103 */ |
| CPU ball number for pin 28 on header 9 (mcasp0) | |
| #define | P9_29 /* &h65 '101 */ |
| CPU ball number for pin 29 on header 9 (mcasp0) | |
| #define | P9_30 /* &h66 '102 */ |
| CPU ball number for pin 30 on header 9. | |
| #define | P9_31 /* &h64 '100 */ |
| CPU ball number for pin 31 on header 9 (mcasp0) | |
| #define | P9_33 /* no_pinmuxing_for_AIN4 */ |
| Analog line on pin 33 on header 9. | |
| #define | P9_35 /* no_pinmuxing_for_AIN6 */ |
| Analog line on pin 35 on header 9. | |
| #define | P9_36 /* no_pinmuxing_for_AIN5 */ |
| Analog line on pin 36 on header 9. | |
| #define | P9_37 /* no_pinmuxing_for_AIN2 */ |
| Analog line on pin 37 on header 9. | |
| #define | P9_38 /* no_pinmuxing_for_AIN3 */ |
| Analog line on pin 38 on header 9. | |
| #define | P9_39 /* no_pinmuxing_for_AIN0 */ |
| Analog line on pin 39 on header 9. | |
| #define | P9_40 /* no_pinmuxing_for_AIN1 */ |
| Analog line on pin 40 on header 9. | |
| #define | P9_41 /* &h6D '109 */ |
| CPU ball number for double pin 41 on header 9 (second ball is 106) | |
| #define | P9_42 /* &h59 '89 */ |
| CPU ball number for double pin 42 on header 9 (second ball is 104) | |
| #define | JT_04 /* &h5C '92 */ |
| CPU ball number for pin 4 on JTag header (E15) | |
| #define | JT_05 /* &h5D '93 */ |
| CPU ball number for pin 5 on JTag header (E16) | |
Pre-defined macros to handle the beagle bone header pins.
This file contains macros to easy handle the header pins and pin groups of the beaglebone hardware (white, green, black: 2x46 headers). Instead of searching the CPU ball number in lists, you can use these macros named after the header and pin number (ie. pin 3 on header P8 is named P8_03).
Definition in file pruio_pins.bi.
