pruw1.bi File Reference

The declarations for the PruW1 class. More...

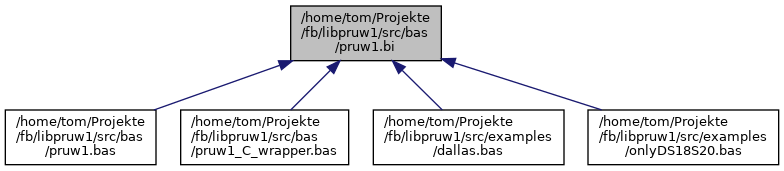

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	PruW1
	The W1 driver class. More...

Typedefs
typedef SHORT	Int16
typedef ULONGINT	UInt64

Enumerations
enum	LineModus { PRUW1_PARPOW = &b01 , PRUW1_PULLUP = &b10 , PRUW1_PARPOW = 0x1 , PRUW1_PULLUP = 0x2 }
	Masks for line idle configuration. More...

Functions
FUNCTION_AS_Int16	T_fam10 (BYVAL_AS_UInt8_PTR)
FUNCTION_AS_Int16	T_fam20 (BYVAL_AS_UInt8_PTR)

Detailed Description

The declarations for the PruW1 class.

This file contains the declarations for the PruW1 class. Include it to compile against the library (#INCLUDE ONCE "BBB/pruw1.bi").

Since

0.0

Definition in file pruw1.bi.

Enumeration Type Documentation

LineModus

enum LineModus

Masks for line idle configuration.

This enumerators are for use in CTOR PruW1::PruW1() to configure the line idle modus, regarding parasite power support and the use of the internal pull up resistor.

Since

0.4

Enumerator
PRUW1_PARPOW	Set line output high during idle.
PRUW1_PULLUP	Activate internal pull up resistor (default)
PRUW1_PARPOW	Set line output high during idle.
PRUW1_PULLUP	Activate the internal pull up resistor.

Definition at line 28 of file pruw1.bi.
