Example code for an empty external emitter. More...

#include "../fbdoc_options.bi"

Include dependency graph for empty.bas:

Functions
SUB_CDECL	empty_declare (BYVAL_AS_Parser_PTR P)
	Emitter called when the Parser is at a variable declaration. More...

SUB_CDECL	empty_function (BYVAL_AS_Parser_PTR P)
	Emitter called when the Parser is on top of a function body. More...

SUB_CDECL	empty_enum (BYVAL_AS_Parser_PTR P)
	Emitter called when the Parser is at the start of a ENUM block. More...

SUB_CDECL	empty_union (BYVAL_AS_Parser_PTR P)
	Emitter called when the Parser is at the start of a UNION block. More...

SUB_CDECL	empty_class (BYVAL_AS_Parser_PTR P)
	Emitter called when the Parser is at the start of a TYPE block. More...

SUB_CDECL	empty_define (BYVAL_AS_Parser_PTR P)
	Emitter called when the Parser is at an #`DEFINE` line or at the start of a #`MACRO` More...

SUB_CDECL	empty_include (BYVAL_AS_Parser_PTR P)
	Emitter called when the Parser is at an #`INCLUDE` line. More...

SUB_CDECL	empty_init (BYVAL_AS_Parser_PTR P)
	Emitter called before the input gets parsed. More...

SUB_CDECL	empty_error (BYVAL_AS_Parser_PTR P)
	Emitter called for an error. More...

SUB_CDECL	empty_empty (BYVAL_AS_Parser_PTR P)
	Emitter called for an empty block in mode –geany-mode (-g). More...

SUB_CDECL	empty_exit (BYVAL_AS_Parser_PTR P)
	Emitter called after the input got parsed. More...

SUB_CDECL	empty_CTOR (BYVAL_AS_Options_PTR O)
	Emitter called before the parser gets created and the input gets parsed. More...

SUB_CDECL	empty_DTOR (BYVAL_AS_Options_PTR O)
	Emitter called after the input got parsed and the parser got deleted. More...

SUB_CDECL	EmitterInit (BYVAL_AS_EmitterIF_PTR Emi, BYREF_AS_STRING Par)
	Initialize the EmitterIF and evaluate parameters. More...

Detailed Description

Example code for an empty external emitter.

This file contains example source code for an external emitter. It isn't used in the fbdoc source tree. See External Emitters for details.

This emitter generates a list of the function names called via the emitter interface. So when you input some FB source to fbdoc and use this emitter, the output is a list of the fbdoc functions called by the parser for this input.

Before you can use this emitter, you have to compile it first, using the command

fbc -dylib empty.bas

The result is a binary called

libempty.so (LINUX)
libempty.dll (windows)

There's no way to compile or use an external emitter on DOS since DOS doesn't support dynamic linked libraries.

To use this emitter in fbdoc set its name (without the suffix .bas) as parameter to option -e. Ie. the emitter output for the context of this file can get written to a text file by

./fbdoc --emitter "empty" empty.bas > test.txt

(LINUX example) and this will generate the following output in file test.txt:

EMPTY_CTOR
EMPTY_INIT
EMPTY_INCLUDE: 77 "../bas/fbdoc_parser.bi"
EMPTY_FUNCTION: 89 empty_declare
EMPTY_FUNCTION: 104 empty_function
EMPTY_FUNCTION: 116 empty_enum
EMPTY_FUNCTION: 128 empty_union
EMPTY_FUNCTION: 140 empty_class
EMPTY_FUNCTION: 152 empty_define
EMPTY_FUNCTION: 168 empty_include
EMPTY_FUNCTION: 180 empty_init
EMPTY_FUNCTION: 192 empty_error
EMPTY_FUNCTION: 204 empty_empty
EMPTY_FUNCTION: 216 empty_exit
EMPTY_FUNCTION: 228 empty_CTOR
EMPTY_FUNCTION: 240 empty_DTOR
EMPTY_FUNCTION: 287 EmitterInit
EMPTY_EXIT
EMPTY_DTOR

The constructor (EMPTY_CTOR) is called once at the start after loading the plugin.
The EMPTY_INIT function is called at the start of each file (#INCLUDE).
The middle part contains EMPTY_FUNCTION calls here (, since the source contains only SUBs and FUNCTIONs).
The EMPTY_EXIT function is called at the end of each file (#INCLUDE).
The destructor (EMPTY_DTOR) is called once after finishing all input.

Test the plugin with other input files, check also option -t to follow a source tree.

Note: fbdoc checks for internal names first, so don't name your customized emitter similar to an internal emitter name.

Since: 0.2.0

Definition in file empty.bas.

Function Documentation

◆ empty_declare()

SUB_CDECL empty_declare ( BYVAL_AS_Parser_PTR P )

Emitter called when the Parser is at a variable declaration.

Parameters

P	The parser calling this emitter

FIXME

Since: 0.2.0

Definition at line 86 of file empty.bas.

Here is the caller graph for this function:

◆ empty_function()

SUB_CDECL empty_function ( BYVAL_AS_Parser_PTR P )

Emitter called when the Parser is on top of a function body.

Parameters

P	The parser calling this emitter

FIXME

Since: 0.2.0

Definition at line 98 of file empty.bas.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ empty_enum()

SUB_CDECL empty_enum ( BYVAL_AS_Parser_PTR P )

Emitter called when the Parser is at the start of a ENUM block.

Parameters

P	The parser calling this emitter

FIXME

Since: 0.2.0

Definition at line 113 of file empty.bas.

Here is the caller graph for this function:

◆ empty_union()

SUB_CDECL empty_union ( BYVAL_AS_Parser_PTR P )

Emitter called when the Parser is at the start of a UNION block.

Parameters

P	The parser calling this emitter

FIXME

Since: 0.2.0

Definition at line 125 of file empty.bas.

Here is the caller graph for this function:

◆ empty_class()

SUB_CDECL empty_class ( BYVAL_AS_Parser_PTR P )

Emitter called when the Parser is at the start of a TYPE block.

Parameters

P	The parser calling this emitter

FIXME

Since: 0.2.0

Definition at line 137 of file empty.bas.

Here is the caller graph for this function:

◆ empty_define()

SUB_CDECL empty_define ( BYVAL_AS_Parser_PTR P )

Emitter called when the Parser is at an #DEFINE line or at the start of a #MACRO

Parameters

P	The parser calling this emitter

FIXME

Since: 0.2.0

Definition at line 149 of file empty.bas.

Here is the caller graph for this function:

◆ empty_include()

SUB_CDECL empty_include ( BYVAL_AS_Parser_PTR P )

Emitter called when the Parser is at an #INCLUDE line.

Parameters

P	The parser calling this emitter

FIXME

Since: 0.2.0

Definition at line 161 of file empty.bas.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ empty_init()

SUB_CDECL empty_init ( BYVAL_AS_Parser_PTR P )

Emitter called before the input gets parsed.

Parameters

P	The parser calling this emitter

FIXME

Since: 0.2.0

Definition at line 177 of file empty.bas.

Here is the caller graph for this function:

◆ empty_error()

SUB_CDECL empty_error ( BYVAL_AS_Parser_PTR P )

Emitter called for an error.

Parameters

P	The parser calling this emitter

FIXME

Since: 0.2.0

Definition at line 189 of file empty.bas.

Here is the caller graph for this function:

◆ empty_empty()

SUB_CDECL empty_empty ( BYVAL_AS_Parser_PTR P )

Emitter called for an empty block in mode –geany-mode (-g).

Parameters

P	The parser calling this emitter

FIXME

Since: 0.2.0

Definition at line 201 of file empty.bas.

Here is the caller graph for this function:

◆ empty_exit()

SUB_CDECL empty_exit ( BYVAL_AS_Parser_PTR P )

Emitter called after the input got parsed.

Parameters

P	The parser calling this emitter

FIXME

Since: 0.2.0

Definition at line 213 of file empty.bas.

Here is the caller graph for this function:

◆ empty_CTOR()

SUB_CDECL empty_CTOR ( BYVAL_AS_Options_PTR O )

Emitter called before the parser gets created and the input gets parsed.

Parameters

O	The Options UDT calling this constructor

FIXME

Since: 0.2.0

Definition at line 225 of file empty.bas.

Here is the caller graph for this function:

◆ empty_DTOR()

SUB_CDECL empty_DTOR ( BYVAL_AS_Options_PTR O )

Emitter called after the input got parsed and the parser got deleted.

Parameters

O	The Options UDT calling this destructor

FIXME

Since: 0.2.0

Definition at line 237 of file empty.bas.

Here is the caller graph for this function:

◆ EmitterInit()

SUB_CDECL EmitterInit	(	BYVAL_AS_EmitterIF_PTR	Emi,
		BYREF_AS_STRING	Par
	)

Initialize the EmitterIF and evaluate parameters.

Parameters

Emi	The newly created EmitterIF to fill with our callbacks
Par	Additional command line parameters, not parsed by fbdoc

When the user requires to load this plugin by option –emitter (-e), this SUB gets called to initialize the EmitterIF. Here, all default pointers (= NULL) get replaced by custom functions. Those functions just report all the fbdoc function calls, in order to make the parsing process transparent.

The second parameter Par is a list of all command line parameters which are unknown to fbdoc. Those options get collected in a string, separated by tabulators (`!"\n"), and starting by a tabulator. This SUB extracts and evaluates its parameters from the string. When the string isn't empty at the end of this SUB, the calling fbdoc program stops execution by an unknown options error.

Since: 0.4.0

Definition at line 261 of file empty.bas.

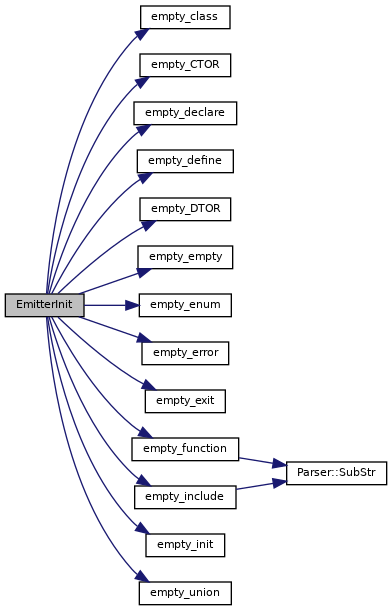

Here is the call graph for this function:

Here is the caller graph for this function:
