analyse.bas File Reference

Example: analyse the subsystems configurations. More...

#include "BBB/pruio.bi"
#include "BBB/pruio_boardpins.bi"

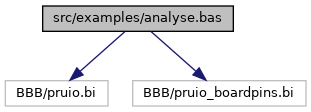

Include dependency graph for analyse.bas:

Go to the source code of this file.

Macros
#define	OUT_TYPE   /* Init ' alternative: Conf */
	The type of the output (either Init or Conf).
#define	REG(_R_)   /* RIGHT(" " & #_R_, 17) & ": " & HEX(.##_R_, SIZEOF(.##_R_) * 2) */
	Output the context of a single register.
#define	DEV(_N_)
	Output the start of a set. More...
#define	BALL_OUT(OUT_TYPE)
	Output the CPU ball configuration. More...
#define	GPIO_OUT(OUT_TYPE)
	Output the configuration of all GPIO subsystems.
#define	TIMER_OUT(OUT_TYPE)
	Output the configuration of all TIMER subsystems. More...
#define	PWMSS_OUT(OUT_TYPE)
	Output the configuration of all PWMSS subsystems.
#define	ADC_OUT(OUT_TYPE)
	Output the configuration of the ADC subsystem.

Functions
int	main ()

Variables
VAR	io = NEW PruIo
	Create a PruIo structure, wakeup subsystems.
VAR	typ = ""
	Board type.
VAR	pins = ""
	Array of board specific ball numbers.

Detailed Description

Example: analyse the subsystems configurations.

This file contains an example on how to use libpruio to read the configurations of the subsystems (initial and corrent). It creates a PruIo structure containing the data and then prints out in a human-readable form. You may 'borrow' some code for debugging purposes in your code. Find a functional description in section analyse.

Licence: GPLv3, Copyright 2014-2023 by Thomas{ doT ]Freiherr[ At ]gmx[ DoT }net

Compile by: fbc -w all analyse.bas

Since

0.0

Definition in file analyse.bas.

Macro Definition Documentation

BALL_OUT

#define BALL_OUT

(

OUT_TYPE

)

Value:

  /* (multi line FreeBASIC #MACRO)
  ?!"\nControl Module (DeAd: " & HEX(.OUT_TYPE->DeAd, 8) & ")"
  FOR i AS INTEGER = 0 TO UBOUND(.OUT_TYPE->Value)
    ?"  " & *.get_config(i)
  NEXT
#ENDMACRO */

Output the CPU ball configuration.

Definition at line 35 of file analyse.bas.

DEV

#define DEV

(

_N_

)

Value:

                       /*  !"\n" & _N_ & _
                       " (DeAd: " & HEX(.DeAd, 8) & _
                       ", ClAd: " & HEX(.ClAd, 8) & _
                       ", ClVa: " & HEX(.ClVa, 8) & ")" */

Output the start of a set.

Definition at line 32 of file analyse.bas.

TIMER_OUT

#define TIMER_OUT

(

OUT_TYPE

)

Value:

  /* (multi line FreeBASIC #MACRO)
  FOR n AS INTEGER = 0 TO UBOUND(.TimSS->OUT_TYPE)
    WITH *.TimSS->OUT_TYPE(n)
      ?DEV("TIMER-" & 4 + n)
      ?REG(TIDR)
      IF 0 = .ClAd THEN ?" --> subsystem not handled " & *IIF(.TIDR, @"(is up)", @"(is down)") : CONTINUE FOR
      IF 0 = .TIDR THEN        ?" --> wake up failed" : CONTINUE FOR

      ?REG(TIOCP_CFG)
      ?REG(IRQ_EOI)
      ?REG(IRQSTATUS_RAW)
      ?REG(IRQSTATUS)
      ?REG(IRQENABLE_SET)
      ?REG(IRQENABLE_CLR)
      ?REG(IRQWAKEEN)
      ?REG(TCLR)
      ?REG(TCRR)
      ?REG(TLDR)
      ?REG(TTGR)
      ?REG(TWPS)
      ?REG(TMAR)
      ?REG(TCAR1)
      ?REG(TSICR)
      ?REG(TCAR2)
    END WITH
  NEXT
#ENDMACRO */

Output the configuration of all TIMER subsystems.

Definition at line 41 of file analyse.bas.

Function Documentation

main()

int main

(

)

The main function.

Definition at line 85 of file analyse.bas.

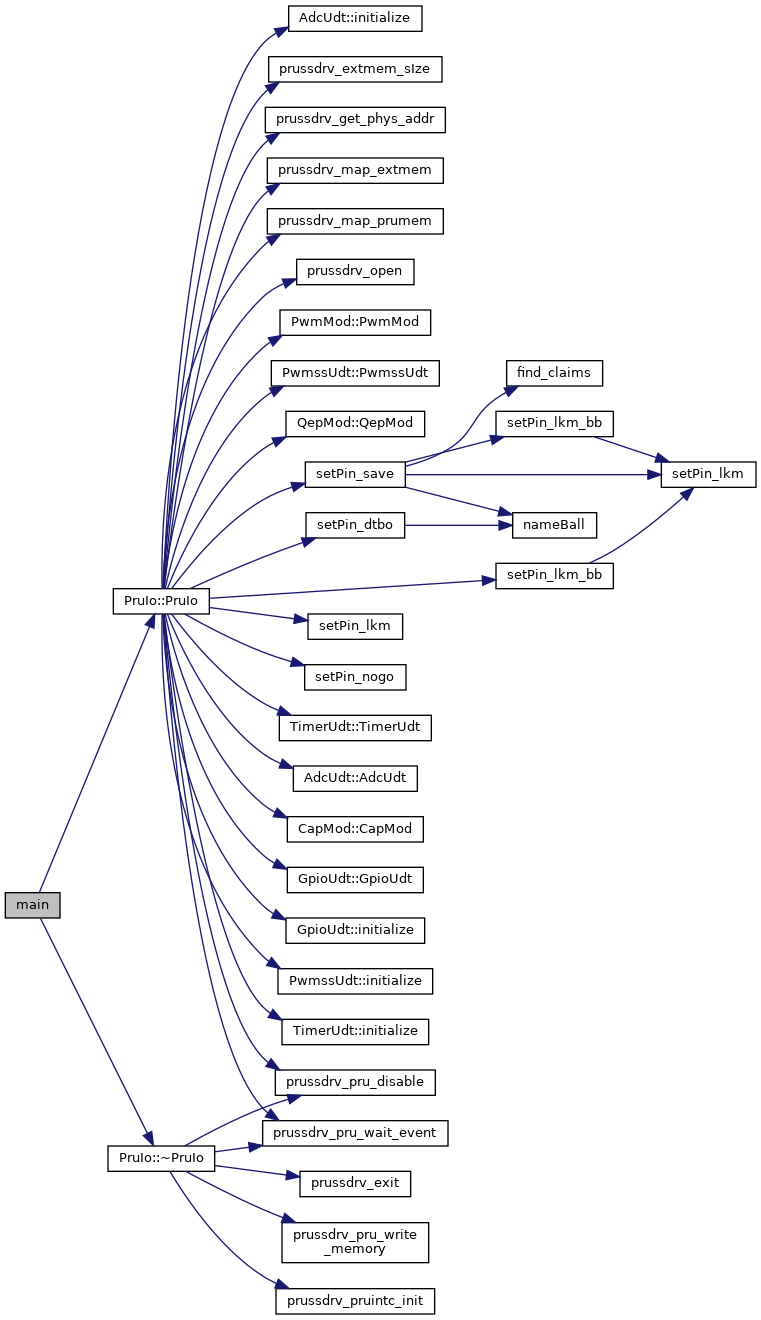

Here is the call graph for this function:
