track_store.bas File Reference

Source handling the tree store for tracks. More...

#include "Gir/Gtk-3.0.bi"
#include "track_layer.bi"
#include "track_store.bi"
#include "gui.bi"

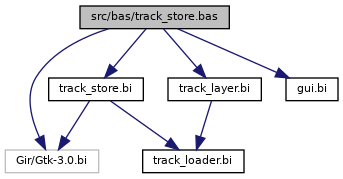

Include dependency graph for track_store.bas:

Go to the source code of this file.

Functions
FUNCTION_CDECL_AS_gboolean	track_store_remove (BYVAL_AS_GtkTreeModel_PTR Model, BYVAL_AS_GtkTreePath_PTR Path, BYVAL_AS_GtkTreeIter_PTR Iter, BYVAL_AS_gpointer UserData)
	Callback for unloading all tracks. More...
SUB	TS_finalize ()
	Remove all tracks from store. More...
SUB	TS_remove (BYVAL_AS_GtkTreeIter_PTR Child)
	Remove a track from store. More...
SUB	TS_select (BYVAL_AS_STRING Path)
	Handle new selection. More...
SUB	TS_preference (BYVAL_AS_TrackLoader_PTR Loa)
	Open the preference dialog. More...

Detailed Description

Source handling the tree store for tracks.

The track data is stored in a GtkTreeStore. The source in this file handles the tree store operations.

Since

0.0

Definition in file track_store.bas.

Function Documentation

track_store_remove()

FUNCTION_CDECL_AS_gboolean track_store_remove	(	BYVAL_AS_GtkTreeModel_PTR	Model,
		BYVAL_AS_GtkTreePath_PTR	Path,
		BYVAL_AS_GtkTreeIter_PTR	Iter,
		BYVAL_AS_gpointer	UserData
	)

Callback for unloading all tracks.

Parameters

Model	tree model
Path	line in Model
Iter	iter in Model
UserData	unused

Returns

FALSE (in order to continue)

This function is designed as a gtk_tree_model_foreach callback. It checks if the tree store line contains a TrackLoader (DELETEing that instance) or gchararray pointers (g_free() that memory).

Since

0.0

Definition at line 134 of file track_store.bas.

Here is the caller graph for this function:

TS_finalize()

SUB TS_finalize

(

)

Remove all tracks from store.

Function checking each store row: in case of a track (no folder) it DELETEs the TrackLoader instance and frees the gchararray memory. Finally it clears the remaining folder entries.

Since

0.0

Definition at line 165 of file track_store.bas.

Here is the call graph for this function:

Here is the caller graph for this function:

TS_remove()

SUB TS_remove

(

BYVAL_AS_GtkTreeIter_PTR

Child

)

Remove a track from store.

Parameters

Child

The iter where to find the track

Procedure to remove a single track from the store, DELETEing the TrackLoader structure.

Since

0.0

Definition at line 182 of file track_store.bas.

Here is the call graph for this function:

Here is the caller graph for this function:

TS_select()

SUB TS_select

(

BYVAL_AS_STRING

Path

)

Handle new selection.

Parameters

Path	The path in the tree model as STRING

This procedure handles a selection change in the tree model. The priviously seleted radio button (if any) gets inactive, and the new one gets active.

Note

We don't use the GtkTreeSelection since it marks the selected row with a blue bar, overriding the bachground color we want to see.

Since

0.0

Definition at line 332 of file track_store.bas.

Here is the call graph for this function:

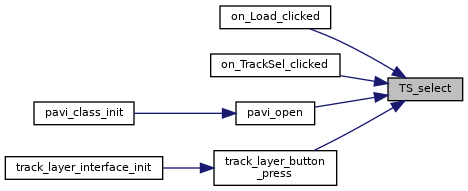

Here is the caller graph for this function:

TS_preference()

SUB TS_preference

(

BYVAL_AS_TrackLoader_PTR

Loa

)

Open the preference dialog.

Parameters

Loa	The track to open for

This procedure handles the preference dialog for a track, loading its parameters in the user interface and providing the dialog to the user. On OK button it reads the new values from the user interface mask and stores them in the track store model.

Since

0.0

Definition at line 368 of file track_store.bas.

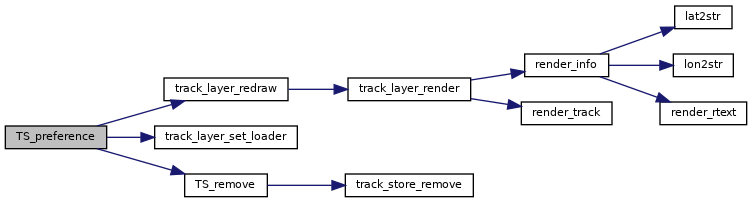

Here is the call graph for this function:

Here is the caller graph for this function:
