sos.c File Reference

Example: blink user LED 3. More...

#include "stdio.h"
#include <termios.h>
#include <unistd.h>
#include <errno.h>
#include <sys/types.h>
#include <sys/time.h>
#include "libpruio/pruio.h"

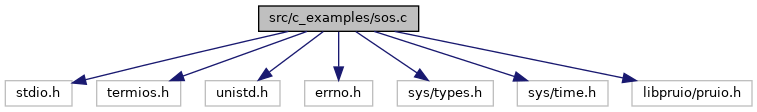

Include dependency graph for sos.c:

Go to the source code of this file.

Macros

#define _GNU_SOURCE   1
 Message for the compiler.

#define PIN   24
 The CPU ball to control (user LED 3).

#define OUT_K   pruio_gpio_setValue(io, PIN, 128 + pinmode) ; isleep(150) ; pruio_gpio_setValue(io, PIN, pinmode) ; isleep(100) ;
 Output a short blink.

#define OUT_L   pruio_gpio_setValue(io, PIN, 128 + pinmode) ; isleep(350) ; pruio_gpio_setValue(io, PIN, pinmode) ; isleep(100) ;
 Output a long blink.

#define OUT_S   OUT_K ; OUT_K ; OUT_K ; isleep(150)
 Output a 'S' (short - short - short).

#define OUT_O   OUT_L ; OUT_L ; OUT_L ; isleep(150)
 Output an 'O' (long - long - long).


Functions

int isleep (unsigned int mseconds)
 Wait for keystroke or timeout. More...

int main (int argc, char **argv)
 The main function. More...


Detailed Description

Example: blink user LED 3.

This file contains an example on how to use libpruio to control the user LED 3 (near ethernet connector) on the beaglebone board. It shows how to unlock a CPU ball that is used by the system. And it shows how to control the unlocked ball. Find a functional description in section sos.

Licence: GPLv3, Copyright 2014-2023 by Thomas{ doT ]Freiherr[ At ]gmx[ DoT }net

Compile by: gcc -Wall -o sos sos.c -lpruio

Since
0.0

Definition in file sos.c.

Function Documentation

◆ isleep()

int isleep ( unsigned int  mseconds)

Wait for keystroke or timeout.

Parameters
msecondsTimeout value in milliseconds.
Returns
0 if timeout, 1 if input available, -1 on error.

Wait for a keystroke or timeout and return which of the events happened.

Definition at line 36 of file sos.c.

Here is the caller graph for this function:

◆ main()

int main ( int  argc,
char **  argv
)

The main function.

< Create a PruIo structure, wakeup subsystems.

< The current pin mode.

Definition at line 67 of file sos.c.

Here is the call graph for this function:
