pwmssUdt Struct Reference

Wrapper structure for PwmssUdt. More...

#include <src/c_include/pruio.h>

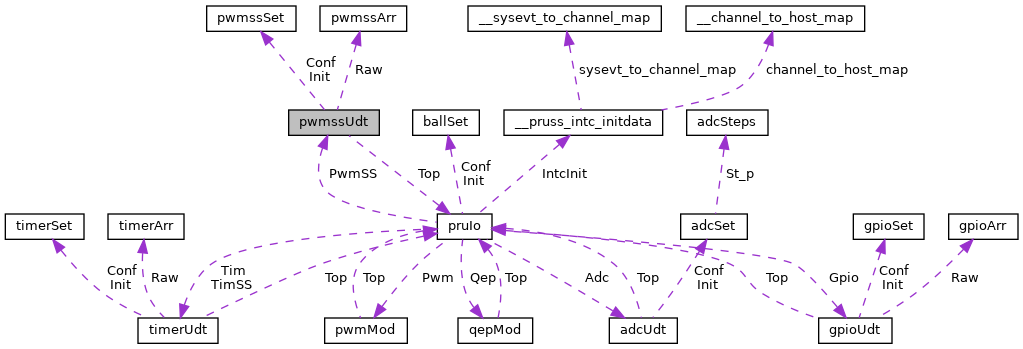

Collaboration diagram for pwmssUdt:

Public Attributes
pruIo *	Top
	pointer to the calling PruIo instance
pwmssSet *	Init [PRUIO_AZ_PWMSS+1]
	Initial subsystem configuration, used in the destructor PruIo::~PruIo().
pwmssSet *	Conf [PRUIO_AZ_PWMSS+1]
	Current subsystem configuration, used in PruIo::config().
pwmssArr *	Raw [PRUIO_AZ_PWMSS+1]
	Pointer to current raw subsystem data (IO).
uint32	InitParA
	Offset to read data block offset.
const uint16	PwmMod
	< Value for ECCTL2 in PWM mode (&b1011010000).
const uint16	CapMod
	Value for ECCTL2 in CAP mode (&b0011010110).

Detailed Description

Wrapper structure for PwmssUdt.

Since

0.2

Definition at line 412 of file pruio.h.

---

The documentation for this struct was generated from the following file:

• src/c_include/pruio.h
