timerUdt Struct Reference

Wrapper structure for TimerUdt. More...

#include <src/c_include/pruio.h>

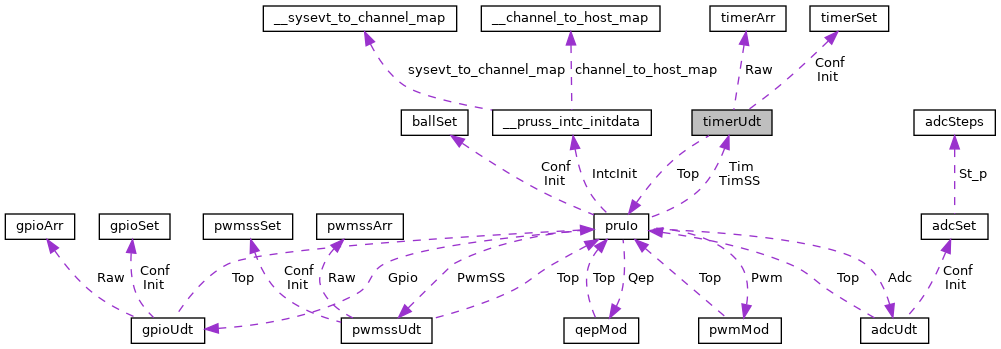

Collaboration diagram for timerUdt:

Public Attributes
pruIo *	Top
	Pointer to the calling PruIo instance.
timerSet *	Init [PRUIO_AZ_GPIO+1]
	Initial subsystem configuration, used in the destructor PruIo::~PruIo().
timerSet *	Conf [PRUIO_AZ_GPIO+1]
	Current subsystem configuration, used in PruIo::config().
timerArr *	Raw [PRUIO_AZ_GPIO+1]
	Pointer to current raw subsystem data (IO), all 32 bits.
uint32	InitParA
	< Offset to read data block offset.
uint32	PwmMode
	< Control register for PWM output mode.
uint32	TimMode
	< Control register for Timer mode.
uint32	TimHigh
	< Control register for Timer high.
uint32	Tim_Low
	< Control register for Timer low.
uint32	CapMode
	Control register for CAP input mode.
char *	E0
	< Common error message.
char	E1
	< Common error message.
char	E2
	Common error message.

Detailed Description

Wrapper structure for TimerUdt.

Since

0.4

Definition at line 264 of file pruio.h.

---

The documentation for this struct was generated from the following file:

• src/c_include/pruio.h
