gpioUdt Struct Reference

Wrapper structure for GpioUdt. More...

#include <src/c_include/pruio.h>

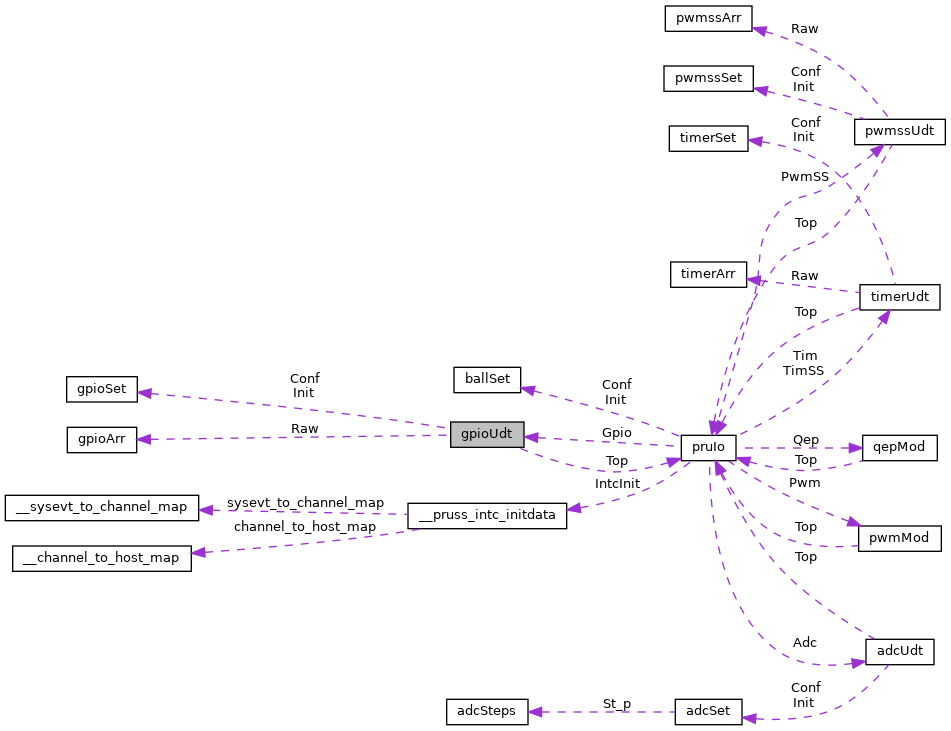

Collaboration diagram for gpioUdt:

Public Attributes
pruIo *	Top
	pointer to the calling PruIo instance
gpioSet *	Init [PRUIO_AZ_GPIO+1]
	Initial subsystem configuration, used in the destructor PruIo::~PruIo().
gpioSet *	Conf [PRUIO_AZ_GPIO+1]
	Current subsystem configuration, used in PruIo::config().
gpioArr *	Raw [PRUIO_AZ_GPIO+1]
	Pointer to current raw subsystem data (IO), all 32 bits.
uint32	InitParA
	Offset to read data block offset.
uint32	Mask
	The bit mask to manipulate.
uint8	Mode
	The mode for pinmuxing.
uint8	Indx
	The GPIO subsystem index.
uint8	Fe1
	Future expansion.
uint8	Fe2
	Future expansion.

Detailed Description

Wrapper structure for GpioUdt.

Since

0.2

Definition at line 193 of file pruio.h.

---

The documentation for this struct was generated from the following file:

• src/c_include/pruio.h
