pwmMod Struct Reference

Wrapper structure for PwmMod. More...

#include <src/c_include/pruio.h>

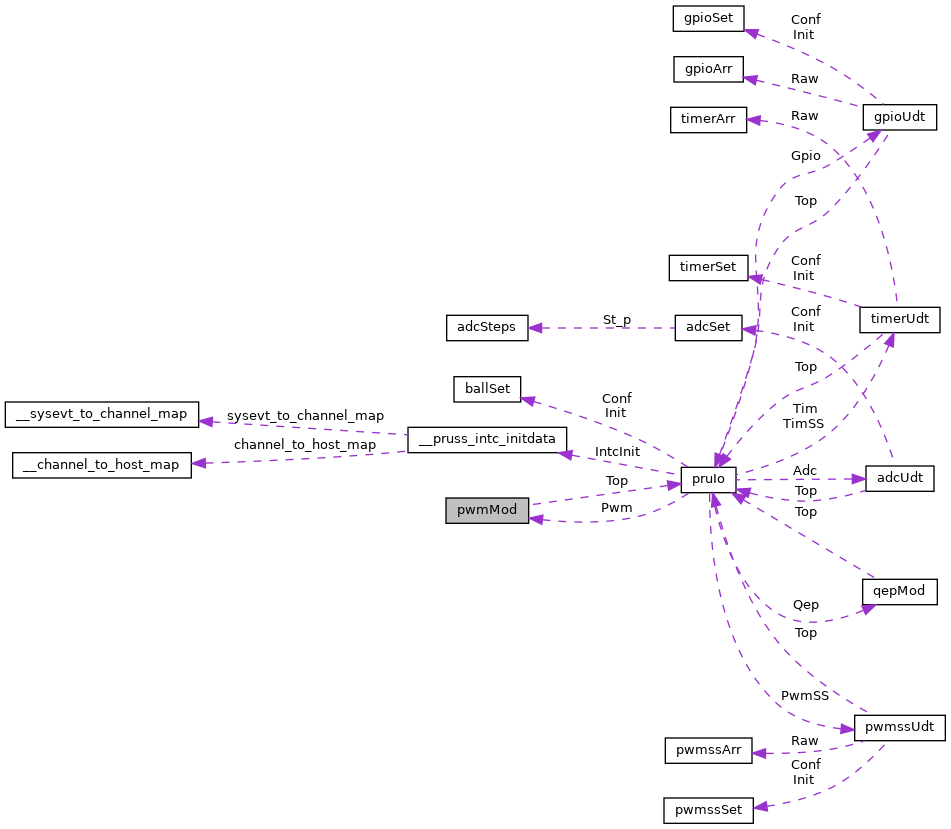

Collaboration diagram for pwmMod:

Public Attributes
pruIo *	Top
	pointer to the calling PruIo instance
uint16	ForceUpDown
	< Switch to force up-down counter for ePWM modules.
uint16	Cntrl [PRUIO_AZ_PWMSS+1]
	< Initializers TBCTL register for ePWM modules (see PWM).
uint16	AqCtl [1+1][PRUIO_AZ_PWMSS+1][2+1]
	Initializers for Action Qualifier for ePWM modules (see PWM).
char *	E0
	< Common error message.
char *	E1
	< Common error message.
char *	E2
	< Common error message.
char *	E3
	< Common error message.
char *	E4
	Common error message.

Detailed Description

Wrapper structure for PwmMod.

Since

0.2

Definition at line 430 of file pruio.h.

---

The documentation for this struct was generated from the following file:

• src/c_include/pruio.h
