pruio.bi File Reference

FreeBASIC header file for libpruio. More...

#include "pruio_globals.bi"
#include "pruio_adc.bi"
#include "pruio_gpio.bi"
#include "pruio_pwmss.bi"
#include "pruio_timer.bi"
#include "pruio_intc.bi"

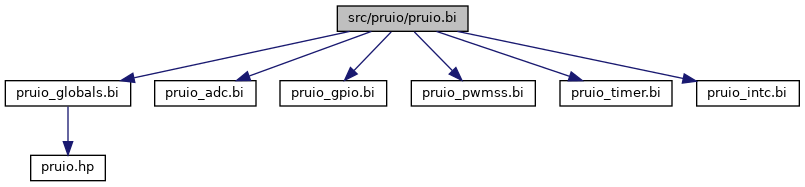

Include dependency graph for pruio.bi:

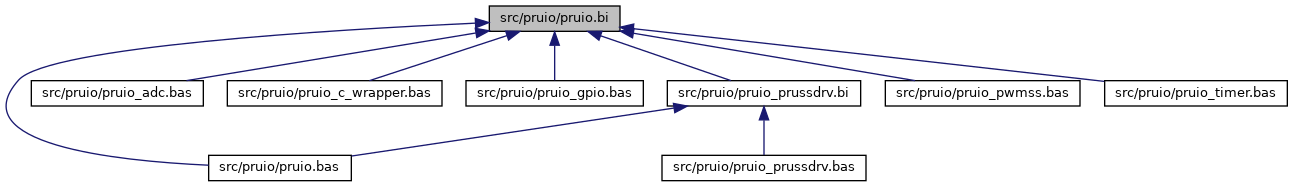

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	BallSet
	Structure for Control Module, containing pad configurations. More...
class	PruIo
	Main structure, binding all components together. More...

Macros
#define	BallCheck(_T_, _R_)   /* IF Ball > PRUIO_AZ_BALL THEN .Errr = @"unknown" _T_ " pin number" : RETURN _R_ */
	Macro to check a CPU ball number (0 to 109 is valid range).

Typedefs
typedef FUNCTION_CDECL_AS_ZSTRING_PTR	setPinFunc(BYVAL_AS_Pruio__PTR Top, BYVAL_AS_UInt8 Ball, BYVAL_AS_UInt8 Mo)
	Alias for pinmuxing signature.

Enumerations
enum	BBTypes {   BBB2x46 = 0 , PBB2x36 = 1 , BB_Blue = 2 , BBB2x46 = 0 ,   PBB2x36 = 1 , BB_Blue = 2 }
	Enumerators for board types. More...
enum	AdcStepMask {   AIN0 = &b000000010 , AIN1 = &b000000100 , AIN2 = &b000001000 , AIN3 = &b000010000 ,   AIN4 = &b000100000 , AIN5 = &b001000000 , AIN6 = &b010000000 , AIN7 = &b100000000 }
	Mask for ADC step enabling. More...
enum	ActivateDevice {   PRUIO_ACT_PRU1 = &b0000000000001 , PRUIO_ACT_ADC = &b0000000000010 , PRUIO_ACT_GPIO0 = &b0000000000100 , PRUIO_ACT_GPIO1 = &b0000000001000 ,   PRUIO_ACT_GPIO2 = &b0000000010000 , PRUIO_ACT_GPIO3 = &b0000000100000 , PRUIO_ACT_PWM0 = &b0000001000000 , PRUIO_ACT_PWM1 = &b0000010000000 ,   PRUIO_ACT_PWM2 = &b0000100000000 , PRUIO_ACT_TIM4 = &b0001000000000 , PRUIO_ACT_TIM5 = &b0010000000000 , PRUIO_ACT_TIM6 = &b0100000000000 ,   PRUIO_ACT_TIM7 = &b1000000000000 , PRUIO_DEF_ACTIVE = &b1111111111111 , PRUIO_ACT_FREMUX = &b1000000000000000 }
	Mask for PRUSS number and divice enabling. More...

Detailed Description

FreeBASIC header file for libpruio.

Header file for including libpruio to FreeBASIC programs. It binds the different components together and provides all declarations.

Since

0.0

Definition in file pruio.bi.

Enumeration Type Documentation

ActivateDevice

enum ActivateDevice

Mask for PRUSS number and divice enabling.

This enumerators are used in the constructor PruIo::PruIo() to enable single subsystems. By default all subsystems are enabled. If a device is not enabled, libpruio wont wake it up nor allocate memory to control it. It just reads the version information to see if the subsystem is in operation.

An enabled subsystem will get activated in the constructor PruIo::PruIo() and libpruio will set its configuration. When done, the destructor PruIo::~PruIo() either disables it (when previously disabled) or resets the initial configuration.

The first enumerator PRUIO_ACT_PRU1 is used to specify the PRU subsystem to execute libpruio. By default the bit is set and libpruio runs on PRU-1. See PruIo::PruIo() for further information.

Since

0.2

Enumerator
PRUIO_ACT_PRU1	Activate PRU-1 (= default, instead of PRU-0)
PRUIO_ACT_ADC	Activate ADC.
PRUIO_ACT_GPIO0	Activate GPIO-0.
PRUIO_ACT_GPIO1	Activate GPIO-1.
PRUIO_ACT_GPIO2	Activate GPIO-2.
PRUIO_ACT_GPIO3	Activate GPIO-3.
PRUIO_ACT_PWM0	Activate PWMSS-0 (including eCAP, eQEP, ePWM)
PRUIO_ACT_PWM1	Activate PWMSS-1 (including eCAP, eQEP, ePWM)
PRUIO_ACT_PWM2	Activate PWMSS-2 (including eCAP, eQEP, ePWM)
PRUIO_ACT_TIM4	Activate TIMER-4.
PRUIO_ACT_TIM5	Activate TIMER-5.
PRUIO_ACT_TIM6	Activate TIMER-6.
PRUIO_ACT_TIM7	Activate TIMER-7.
PRUIO_DEF_ACTIVE	Activate all subsystems.
PRUIO_ACT_FREMUX	Activate free LKM muxing, no kernel claims.

Definition at line 90 of file pruio.bi.

AdcStepMask

enum AdcStepMask

Mask for ADC step enabling.

This enumerators are for use in function PruIo::config() to enable single steps for the ADC sampling sequence. By default steps 1 to 8 are configured to measure AIN 0 to 7, using the values of Averaging, OpenDelay and SampleDelay passed as parameters to the constructor PruIo::PruIo().

Example:

Io->config(AIN0 + AIN3 + AIN4, ...)

Note

A function call to AdcUdt::setStep() for steps 1 to 8 will override the default configuration. Those masks get invalid when you change the step channel.

Since

0.6.4

Enumerator
AIN0	Activate Step 1 (default config: AIN0)
AIN1	Activate Step 2 (default config: AIN1)
AIN2	Activate Step 3 (default config: AIN2)
AIN3	Activate Step 4 (default config: AIN3)
AIN4	Activate Step 5 (default config: AIN4)
AIN5	Activate Step 6 (default config: AIN5)
AIN6	Activate Step 7 (default config: AIN6)
AIN7	Activate Step 8 (default config: AIN7)

Definition at line 59 of file pruio.bi.

BBTypes

enum BBTypes

Enumerators for board types.

Since

0.6.8

Enumerator
BBB2x46	Classic Beaglebone board with 2x46 headers, JT, SD.
PBB2x36	PocketBeagle board with 2x36 headers, SD.
BB_Blue	Beaglebone Blue with connectors, SD.
BBB2x46	Classic Beaglebone board with 2x46 headers, JT, SD.
PBB2x36	PocketBeagle board with 2x36 headers, SD.
BB_Blue	Beaglebone Blue with connectors, SD.

Definition at line 34 of file pruio.bi.
